52mm CAN Gauge

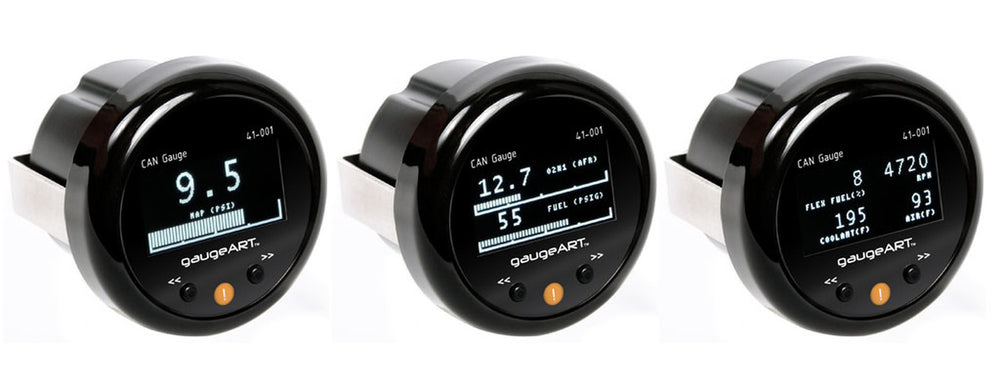

The gaugeART 52mm CAN Gauge is an innovative, compact gauge featuring a high-contrast OLED display for real-time engine data. It allows for displaying various parameters such as boost pressure, air/fuel ratio, coolant temperature, and fuel pressure directly from compatible engine control units, eliminating the need for additional sensors. The display can be configured with layouts of 1, 2, or 4 gauges across up to 10 different pages. Customizable warning points can be set for critical parameters like high coolant temperature, which will trigger a special warning screen and an LED on the gauge face. Configuration is made easy via a smartphone or tablet using the included gaugeART CAN Gauge App, compatible with Android 4.4+ and iOS. The gauge also features a dimming function for the OLED display when parking lights are activated. This gauge is compatible with a wide range of popular aftermarket ECUs, including Adaptronic, AEM, Haltech (specific models/dealers only), Hondata, Link ECUs, MaxxECU, Megasquirt, MoTeC, and more. It also supports factory ECUs with CAN communication through the use of the gaugeART CAN OBD Link. However, it is important to note that the standard gaugeART 52mm CAN Gauge (41-001) is NOT compatible with Haltech ECUs; a specific Haltech-compatible gauge is required for those applications. The gauge operates on 11-15 VDC and has a maximum continuous current draw of 250 mAh. Standard and optional ECU-specific, extension, and daisy-chain cables are available.
