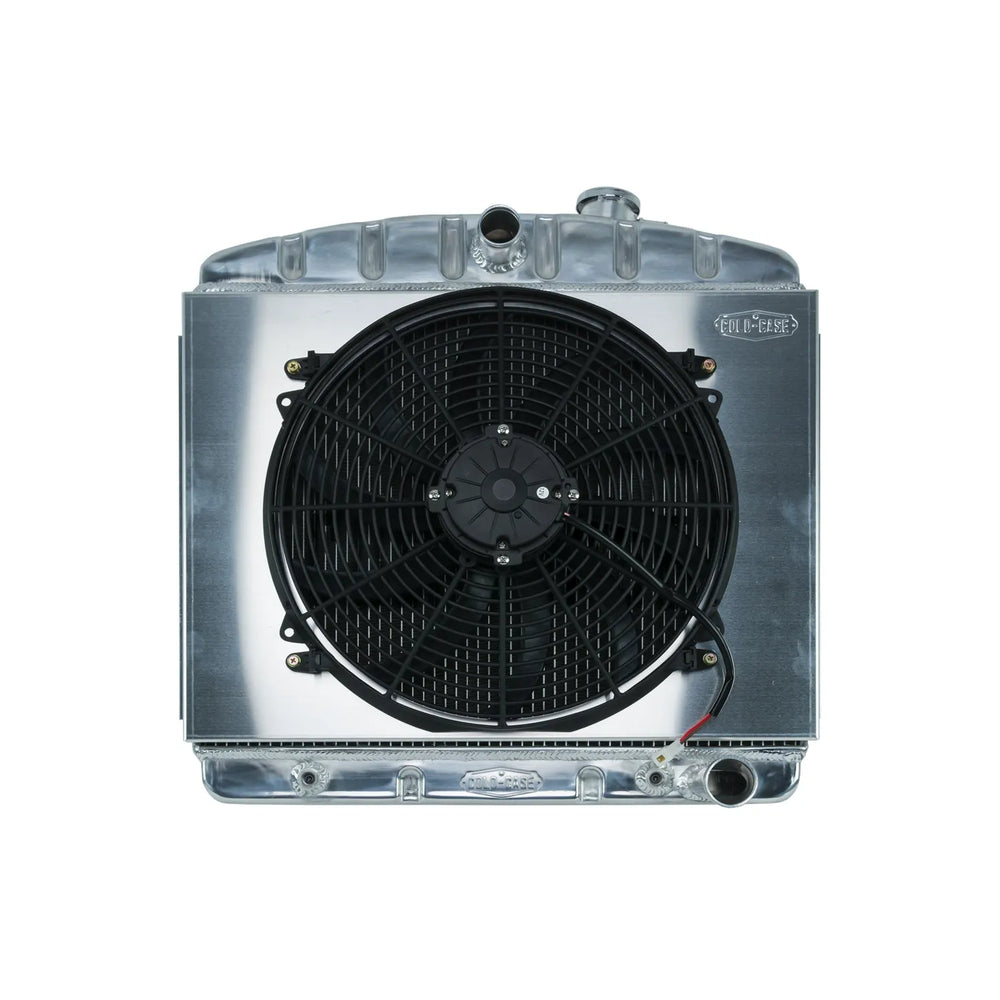

55-57 Tri-5 Chevy Aluminum Radiator And 16 Inch Fan Kit (V8 Mount) Cold Case Radiators

Part #: CHT562AK

55-57 Tri-5 Chevy Aluminum Radiator And 16 Inch Fan Kit (V8 Mount). V8 Position cars for mount Behind radiator support. There is not enough space to put a clutch fan on the front of a SB and still mount the radiator in the V8 position. There is a 6 blade stationary and 7 blade flex fan you can use though.These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.100 percent TIG weldedFan Diameter 16 InchAll AluminumPolished OE style tanks16 fins per inchCorrugated fins that give more surface area and more thermal transferPressure testedFor manual/auto transDirect fitment for 55-57 Chevy (V8 position mount)Old Part Number: RPE562KRadiator SpecsCore Height 17 inchCore Width 22 inchOverall Height 23.5 To CapOverall Width 23.5 inchOverall Thickness 3 inchTubes (2) 1.25 inch TubesUpper Hose 1.50 inchLower Hose 1.77 inch

Radiator and Fan - 23.500 in W x 23.500 in H x 3 in D - Center Inlet - Passenger Side Outlet - Aluminum - Polished - Chevy V8 - Chevy Fullsize Car 1955-57 - Kit
