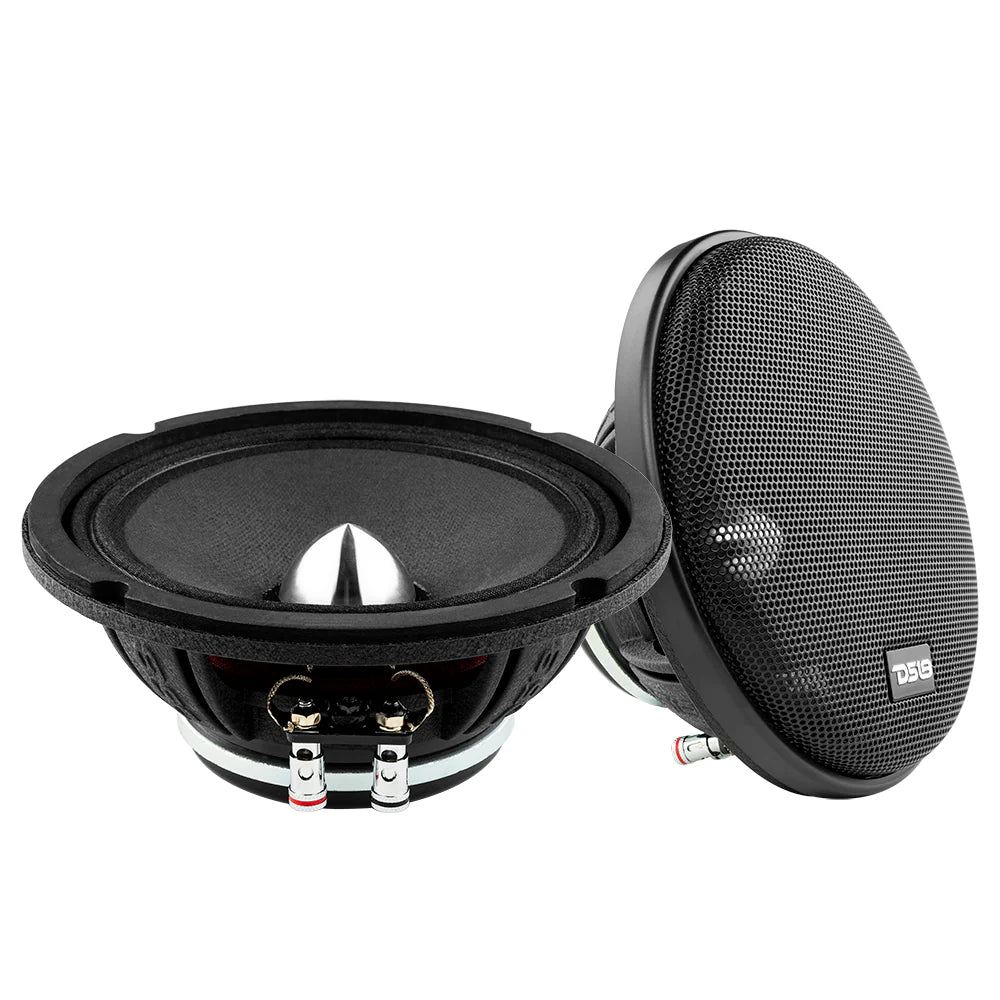

6.5-Inch Full-Range Loudspeaker

The DS18 PRO-FR6NEO is a 6.5-inch full-range loudspeaker engineered to deliver exceptional sound quality and volume. Its design incorporates a lightweight yet powerful neodymium magnet, a robust CNC aluminum bullet phase plug, and a sturdy aluminum basket for durability and high SPL (Sound Pressure Level) output. The speaker is rated for 450 watts maximum power and 225 watts RMS, with a nominal impedance of 4 ohms, making it compatible with a wide range of amplifiers. This loudspeaker is tuned for precision, offering a frequency response from 200 Hz to 16 KHz, ensuring that both mid-range frequencies and sharp highs are reproduced with clarity. The inclusion of a silver bullet phase plug helps to expand the upper frequency range, and a protective grill is provided for show-ready installation. The Kapton voice coil former and KCCAW winding material contribute to its performance and heat resistance. Key specifications include a sensitivity of 96 dB (1W/1m), a voice coil diameter of 1.5 inches, and a front mount baffle cutout of 5.7 inches. The recommended high-pass crossover is 200 Hz, ensuring optimal integration into a sound system. The mounting depth is approximately 2.36 inches, allowing for relatively straightforward installation in various applications.
