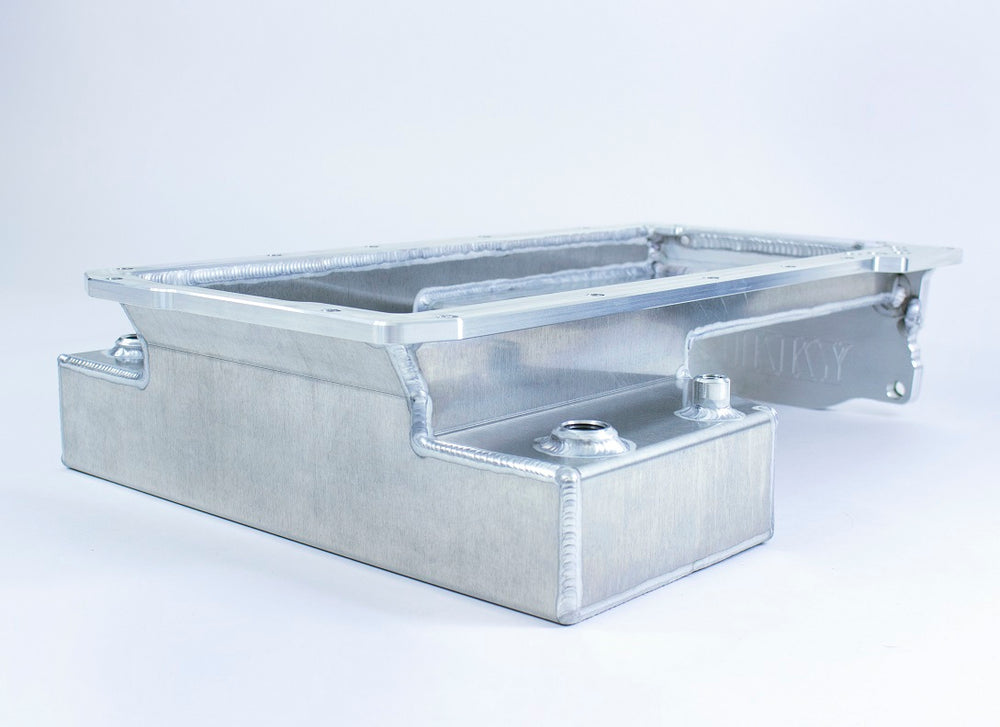

6.8-Quart High Capacity Oil Pan

It features a robust construction with a ½” thick CNC machined 6061 billet aluminum flange and back plate, offering superior strength and durability compared to flimsy steel pans. This design ensures it fits perfectly around the front subframe of the BRZ chassis when used with the Sikky LS BRZ Motor mount kit. Key features include a high-capacity 6.8-quart sump for ample oil volume and a high ground clearance design that prevents the pan from hanging low. It also includes ½” NPT turbo oil drain bungs on both sides and a 1/8” NPT oil temperature bung, along with a machined gasket surface to prevent leaks. The included back plate is compatible with factory dust covers to keep debris out of the bell housing. This oil pan is suitable for a wide range of LS engines, including LS1, LS2, LS3, LS6, L99, LQ4, LQ9, LSA, LS7, LS9, and LSX. For optimal fitment, it is recommended to use it with the Sikky Mount kit. Please note that aftermarket oil pumps may require modifications to the windage tray and baffle, and additional clearance on the pan flange might be necessary. Ensure at least a 3/8” gap between the bottom of the pickup tube and the oil pan. The kit includes the oil pan, Sikky oil pump pickup tube, dipstick tube and dipstick, a pan-mounted remote oil filter adapter, a magnetic drain plug, NPT plugs, and a hardware kit.
