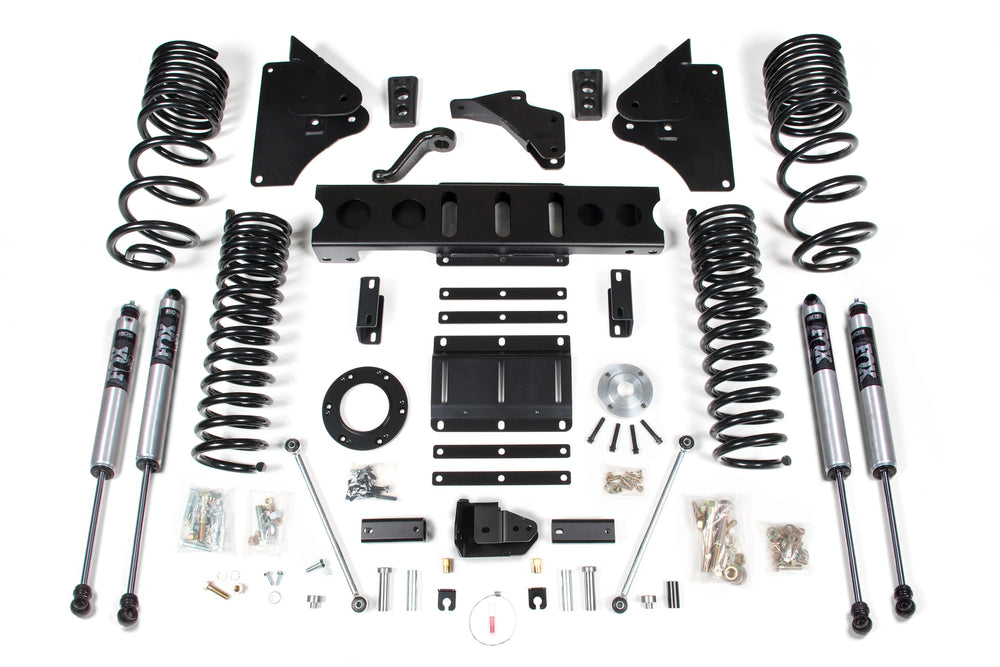

6-Inch Lift Kit w/ NX2 or FOX 2.0 Shocks

The BDS Suspension 6-inch radius arm lift kit is engineered to elevate the performance and aesthetics of your 2014-2018 Ram 2500 diesel-powered truck. This comprehensive system is designed to provide clearance for up to 37-inch tires, significantly enhancing off-road capability and tire fitment options. High-strength tubular radius arms replace the factory components, offering a wide range of caster adjustment for different lift heights and incorporating OE-style rubber bushings for quiet operation. Steering geometry is optimized with a forged drop pitman arm to minimize steering angle and a heavy-duty track bar drop bracket to maintain axle centering. To accommodate the lift height, the kit includes an indexing ring and a new transmission crossmember to correct the front driveline angles and allow the use of the factory front driveshaft. In the rear, progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, and sway bar links are provided to ensure proper axle positioning and suspension performance. Customers can choose between BDS NX2 Nitro Series shocks or FOX 2.0 Performance Series IFP shocks. The NX2 shocks feature a twin-tube design with 10-stage velocity-sensitive valving and a silver powder coat finish. The FOX 2.0 shocks boast an extruded aluminum body, internal floating piston monotube design, CNC-machined mounting ends, and application-specific valving for maximum performance and a clear anodized finish.
