60 lbs/hr High-Impedance Fuel Injectors (Set of 8)

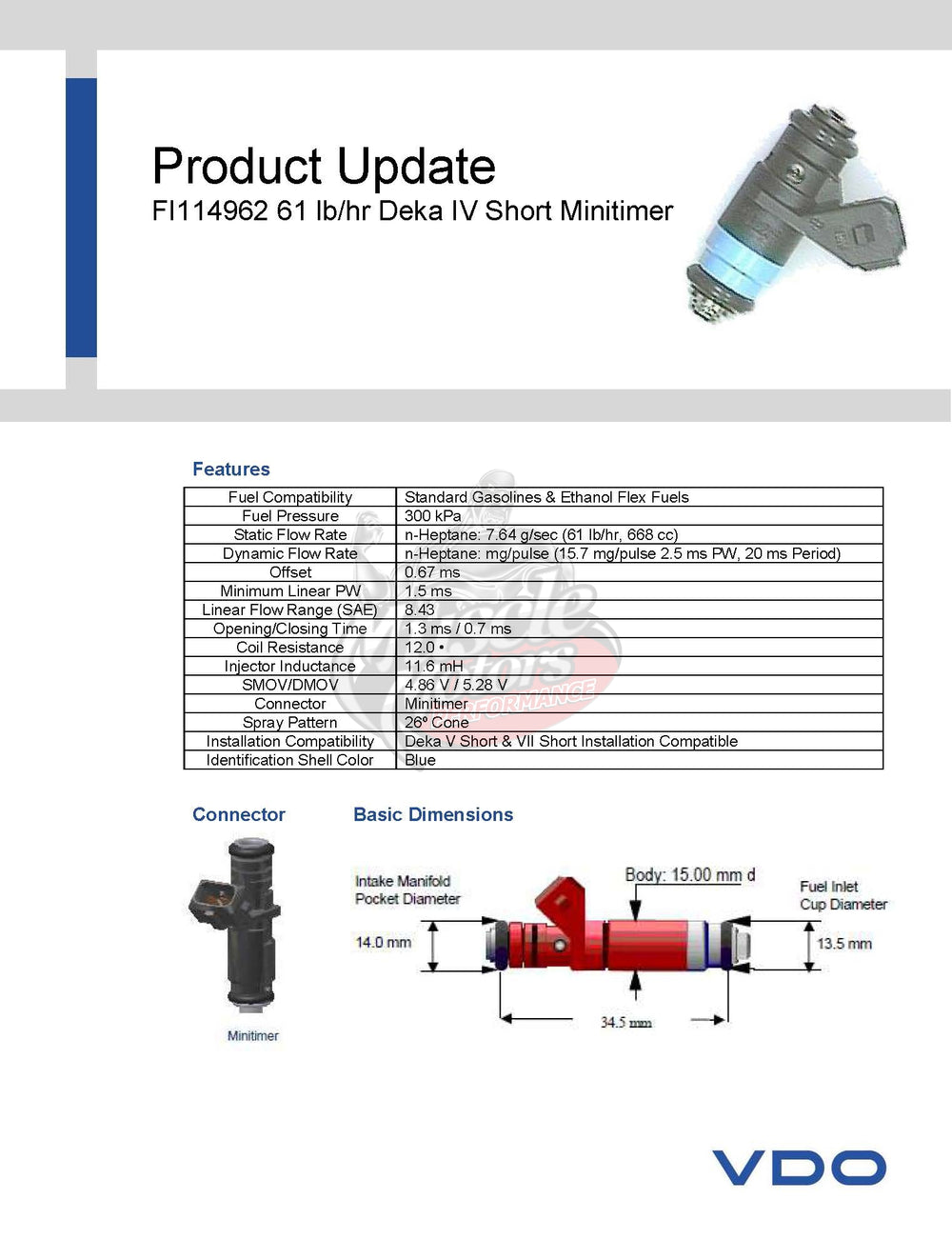

The Siemens Deka FI114962 is a set of eight high-impedance, short-style fuel injectors, identified by the DEKA 4 (DEKA IV) series. These injectors are designed for performance applications, offering an ultra-compact size of just 37.5mm end-to-end while delivering a high flow rate. Engineered for reliability and performance, these injectors flow 60 lbs/hr at 43.5 PSI (3 BAR), providing up to 85.7 lbs/hr at 87 PSI. Their high-impedance design (12.5 Ohms) makes them compatible with most ECUs without requiring ECM driver modifications, offering low-impedance performance characteristics. This flexibility allows for the use of larger injectors without compromising idle or low-speed driveability, making them suitable for turbocharged and supercharged applications that operate at high fuel system pressures. The injectors feature a multi-orifice tip that creates a true 30-degree spray cone, promoting improved fuel atomization and better mixture preparation compared to single-stream injectors. This optimized spray pattern contributes to enhanced engine performance, better idle quality, and lower BSFC (Brake Specific Fuel Consumption). The injectors are factory-fitted with Viton upper and lower o-rings and utilize an EV1 Minitimer connector. A flash drive containing necessary tuning data is included with the set. Key specifications include a 0.055ms offset, 1.14ms turn-on time at 14VDC, and an 0.85ms turn-off time at 600KPa.
