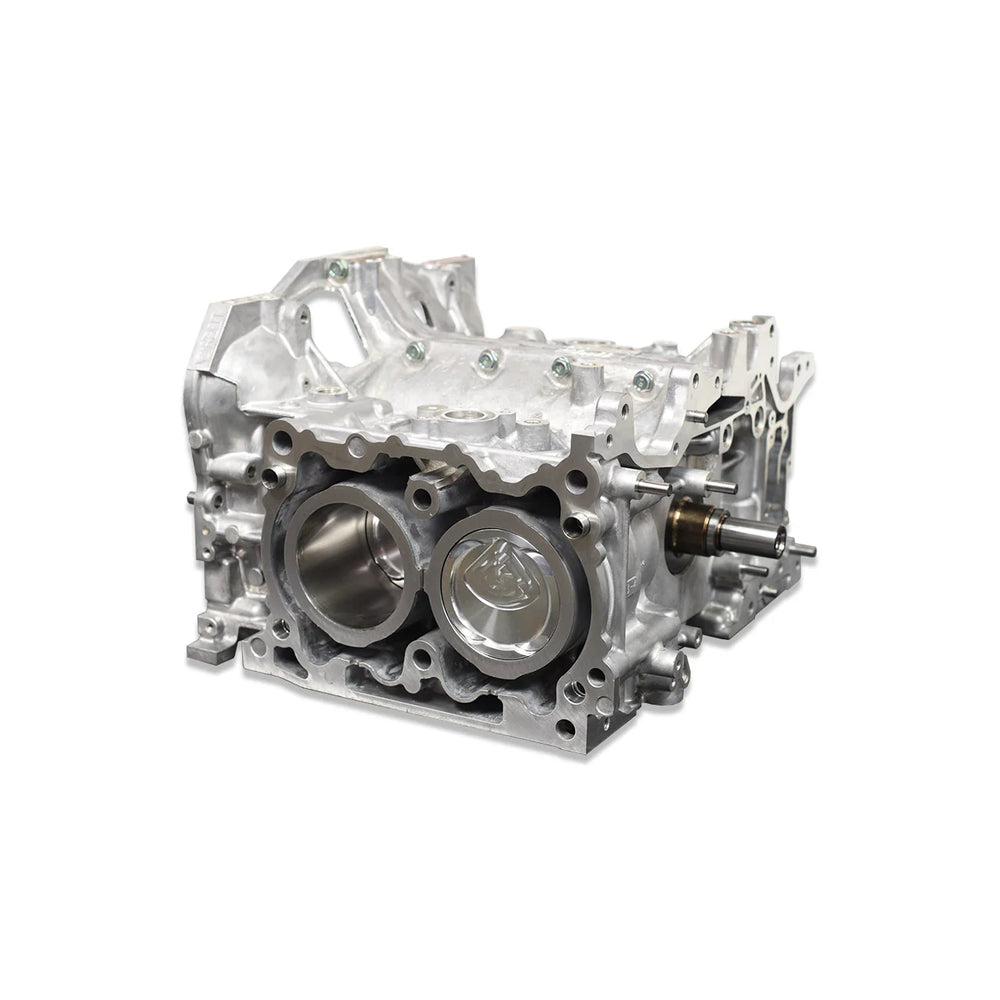

600 Short Block 86.1mm Forged Piston Engine Assembly

$5,249.99

SKU: IAG-ENG-S686H

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $200
$100 Minimum Order
30 Days Return
INSTALL DIFFICULTY
DIY PRO SHOP

Advanced — 4+ hours

Overview

The IAG 600 Series FA20 is a standard compression short block engineered for stock or modified FA20 Subaru BRZ/FT86 engines. It provides a stronger foundation to support higher cylinder pressures from modifications or aftermarket turbo kits. Featuring IAG Spec H-Beam forged connecting rods and race-grade bearings, this short block reliably handles loads that stock components cannot.
Show original supplier description
The IAG 600 Short Block is engineered for stock or modified FA20 DIT Subaru engines, providing a robust foundation to withstand the increased cylinder pressures generated by higher boost levels. Designed for strength, this short block utilizes IAG Spec H-Beam forged connecting rods paired with ARP2000 rod bolts and race-spec ACL or King XPG rod bearings. The assembly begins with brand-new OEM Subaru FA20 case halves, which are meticulously bored and honed to 86.1mm. It incorporates a new 2015+ Subaru FA20 crankshaft matched with ACL or King XPG main bearings, and is sealed with new OEM main case bolts and sealant. Key components include IAG Spec JE FSR 86.1mm forged pistons, crafted from 2618 T6 alloy for high strength and reduced friction. These pistons feature an asymmetrical skirt design for weight reduction and improved flame travel. The short block also boasts modified internal oil passages within the new OEM cases to ensure adequate oil flow and enhance overall reliability, a critical improvement over stock oiling systems. This short block has a power output rating of 600 BHP and a compression ratio of 12.5:1 with a standard gasket thickness. It is compatible with 2013-2016 Scion FR-S, 2013-2020 Subaru BRZ, and 2017-2020 Toyota 86 models.

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandIAG
Part NumberIAG-ENG-S686H
CategoryEngines and Components
