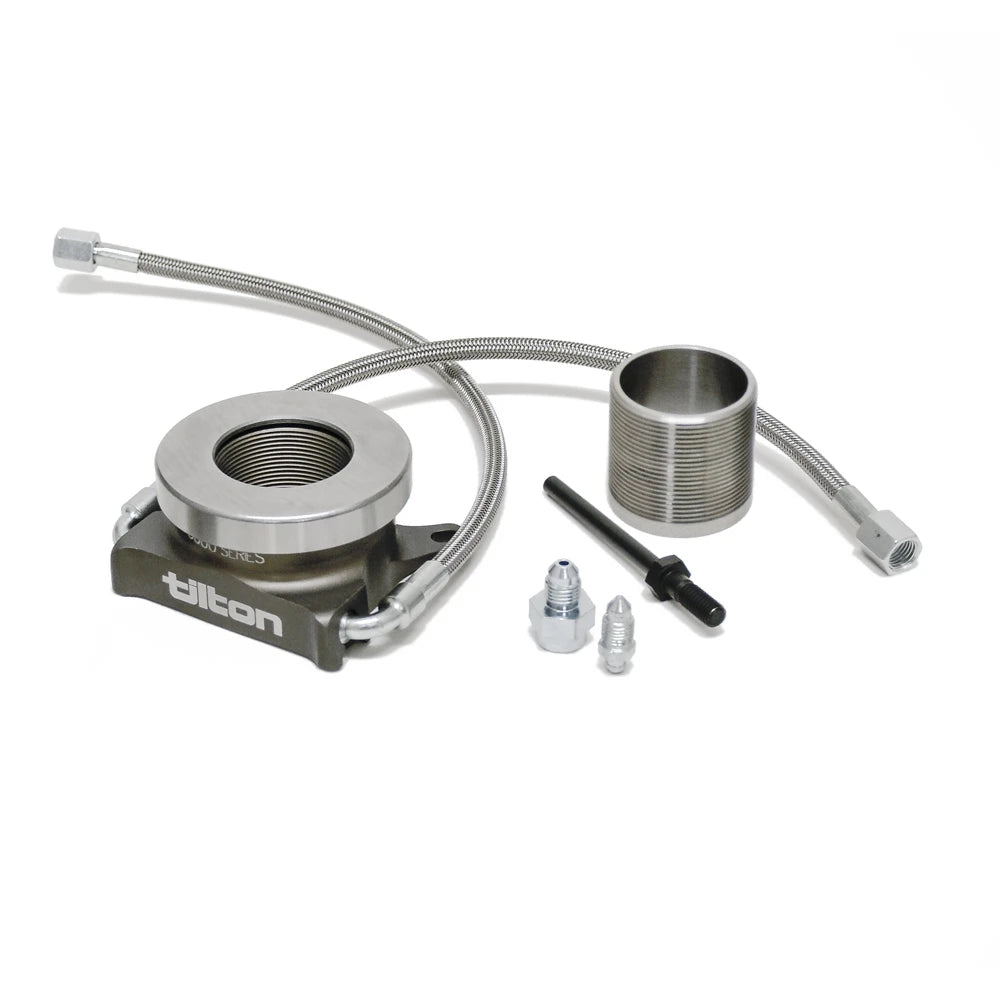

6000-Series Hydraulic Release Bearing

This direct-acting unit eliminates lost motion from cable stretch or linkage flex. Its adjustable-height base is designed to fit over the OEM bearing retainer and is compatible with numerous transmission types, including Ford Tremec TKO/TKX/500/600, Ford T-5, Toploader (1 1/16″ x 10 input shaft), Tremec T56/Magnum (except P/N TUET11010), Ford Tremec Magnum (P/N TUET11010), GM Tremec TKO/500/600, GM Saginaw, and GM T-5, among others. The flat-faced bearing features a wide contact surface diameter ranging from 1.71" to 2.83", suitable for most 8 1/2" to 10 1/2" stock and high-performance street clutches. The assembled height is adjustable from 1 3/4" to 3", accommodating various clutch brands. A special anti-rotation bolt is included to secure the height adjustment by replacing a stock bearing retainer bolt. This hydraulic release bearing has a maximum travel of 0.70 inches, necessitating the use of a clutch pedal stop to prevent damage to the clutch and engine. Tilton recommends pairing this assembly with a 7/8" bore master cylinder, which is sold separately. AN4 pressure and bleed hoses are supplied with the unit. Installation videos are available to guide users through the proper setup and clutch clearance adjustment.
