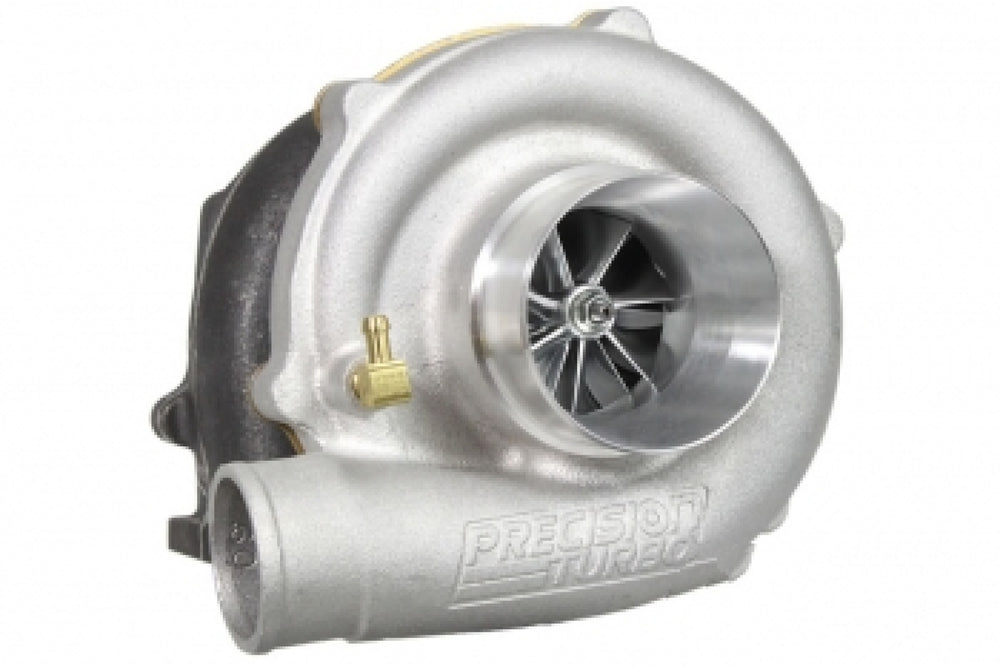

6176 61mm Turbocharger

The 61mm Precision PTE 6176 Turbo is positioned as a budget-friendly option for enthusiasts seeking enhanced performance. It incorporates an 82mm Machined From Solid (MFS) compressor wheel, offering characteristics similar to higher-end billet wheels at a more accessible price point. This turbo is rated to support up to 670 horsepower, making it suitable for various performance builds. Internally, the PTE 6176 features a journal bearing system and requires oil cooling for operation. The compressor specifications include a 61.37mm inducer and an 81.97mm exducer, with inlet and outlet connections accommodating 3.0"/4.0" (inlet) and 2.0"/2.5" (outlet) hose couplers, respectively. The turbine side features a 74.17mm inducer and a 64.56mm exducer. Precision offers this turbo in ten different turbine housing configurations, allowing for tailored performance matching. These configurations range from Buick direct bolt-on options to T3 and T4 inlets with various A/R ratios and outlet types like 4-bolt and V-band. Due to its nature as a performance turbocharger, the PTE 6176 is a universal component and will require custom fabrication and integration for installation. This typically involves custom exhaust manifold fabrication, intake plumbing, oil feed and drain lines, and coolant lines if applicable (though this model is oil-cooled only). Additional universal installation parts, such as V-band flanges, gaskets, and silicone couplers, may be necessary to complete the installation.
