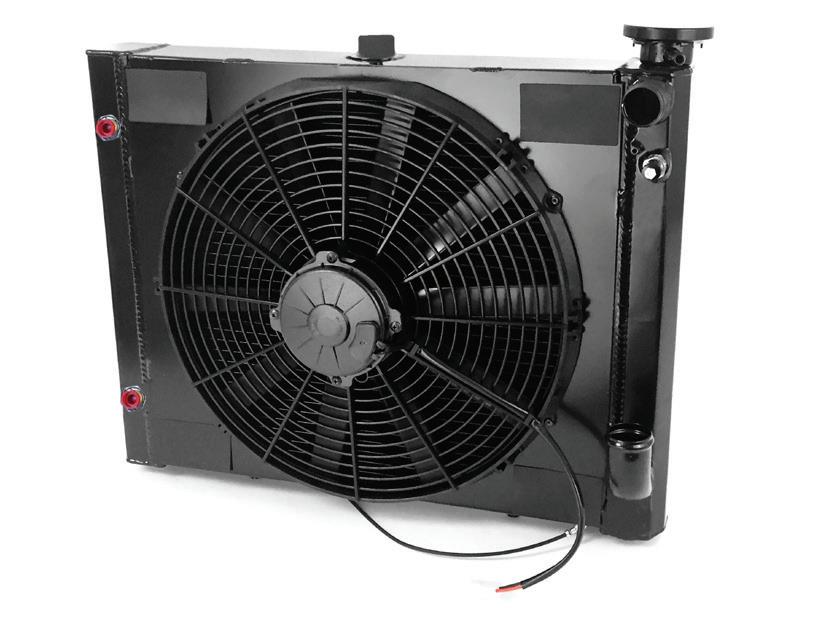

6972 CORVETTE LS COMBO WITH ORIGINAL BASE MODEL SUPPORT

This radiator is designed to simplify an LSX series engine conversion on 1969-72 Corvettes. It features inlet and outlet moved to the passenger side and resized to match LSX engine ports. It also includes a filler neck for a direct mounted radiator cap, eliminating the need for a separate surge tank, and a connection for the steam line. Designed to fit the original small block (pin mount) core support, it eliminates the stock upper mounting bracket. This larger package fills 100% of the core support opening with functioning core area. Pre-mounted SPAL dual 11” electric fans provide 2720 CFM airflow, eliminating the factory fan and shroud. The fans are controlled via a 195on/175off temperature switch mounted inside the end tank. Wiring harnesses, relays, and instructions are included.
