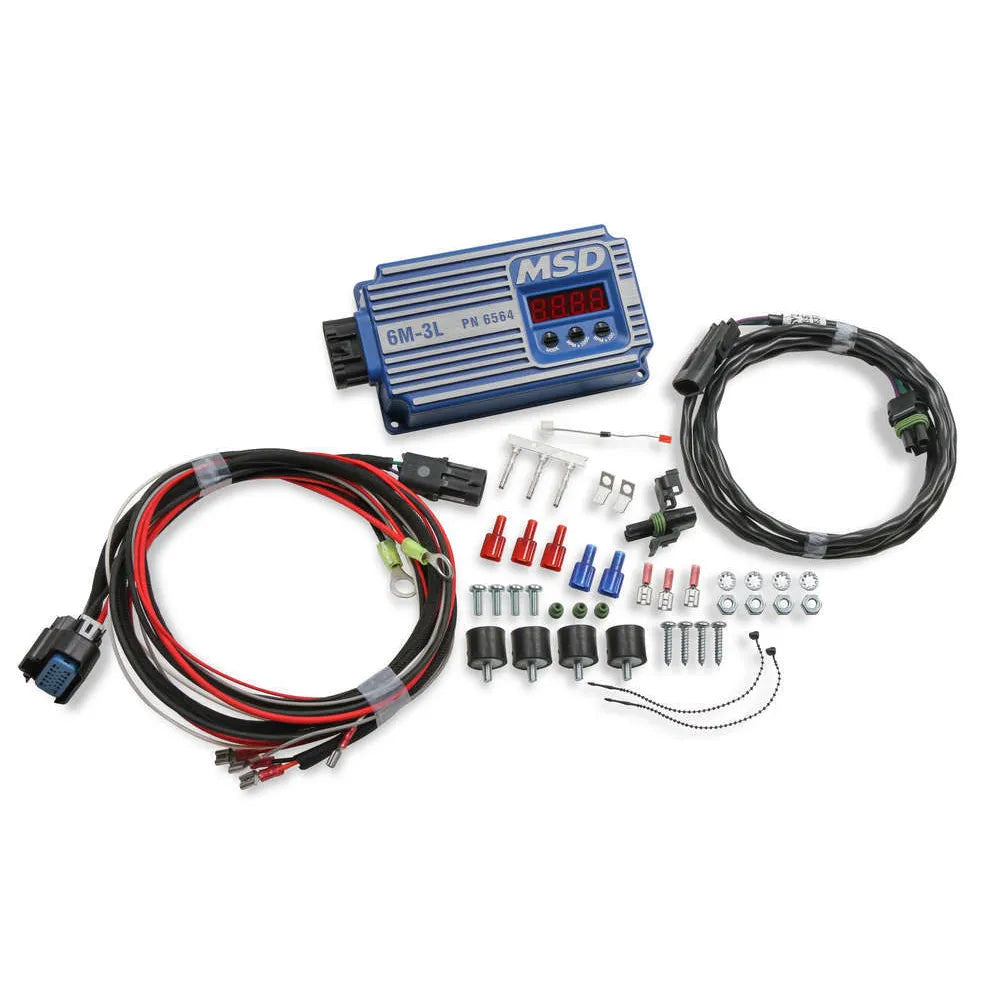

MSD Digital 6M-3L Marine Ignition Marine Certified, Digital Capacitive Discharge Ignition With Built-In Rev Limiter And Start Retard MSD Ignition

Part #: 6564

Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob.We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy.The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs!Highly efficient, low current draw for extended battery lifeWorks on 4, 6 and 8 cylinder enginesLarge, easy to read LED displayEasy setup of features with three rotary dials on the face of the unitRecords highest RPM the engine turned for last 20 minutes of run timeLED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach modeCan be triggered by magnetic pickup, amplifier, and points inputs0.8 Amps per 1,000 RPMReverse polarity and overheat protection provide ultimate reliabilityShift interrupt feature eases shiftingBuilt-in Start Retard adjustable in 00, 100 or 200 increments for quick, easy starts and extend starter lifeSealed connector for clean wiring and trouble-free operation535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250Fully potted housing to withstand demanding marine conditionsFull delivery of spark energy and easy starting down to 6 volts battery supplyMSD (TM)s smoothest rev limiter yet, protecting parts and saving your engineDetails:Connector Gender: Male FemaleConnector Quantity: 1.0Current Draw: 1000Emission Code: 3Height: 1.87Ignition Type: PerformanceLength: 7.89Maximum Rpm: 12,000Mounting Hardware Included: YesMounting Type: Surface MountPrimary Voltage: 535-550Spark Energy Mj Per Spark: 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250Terminal Gender: MaleTerminal Quantity: 12.0Warranty: Manufacturer's Limited 1 Year Warranty

Features:

• Large, easy to read LED display
• Shift interrupt feature eases shifting
• MSD's smoothest rev limiter yet, protecting parts and saving your engine
• Records highest RPM the engine turned for last 20 minutes of run time
• Easy setup of features with three rotary dials on the face of the unit
• Built-in Start Retard adjustable in 0, 10 or 20 increments for quick, easy starts and extend starter life
• LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
• Full delivery of spark energy and easy starting down to 6 volts battery supply
• Highly efficient, low current draw for extended battery life
• Fully potted housing to withstand demanding marine conditions
• Sealed connector for clean wiring and trouble-free operation
• Works on 4, 6 and 8 cylinder engines
• Reverse polarity and overheat protection provide ultimate reliability
• Can be triggered by magnetic pickup, amplifier, and points inputs

Ignition Box - 6M-3 L - Digital - CD Ignition - Multi-Spark - 45000V - Rev Limiter - Weathertight Connectors - Marine - Each
