7-WAY SUPER SEALED CAR END W/ 2' CA

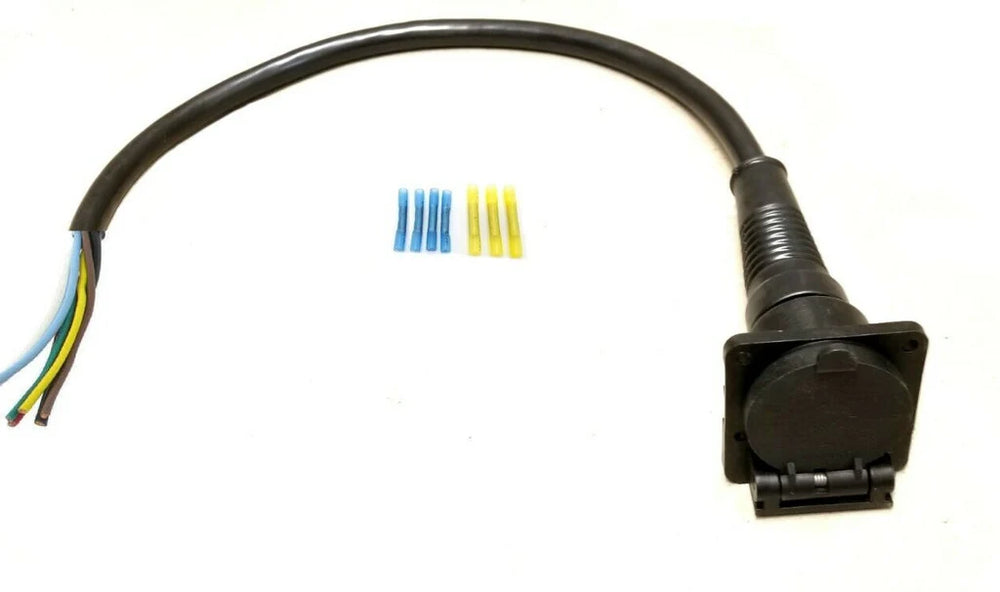

The Draw-Tite 7-Way Super Sealed Car End is a trailer wiring connector designed for robust performance. It features a sealed 7-blade connector with a 2-foot cord that is protected with an insulating coating to shield it from the elements. This connector has a spring-loaded cap to protect the connection points and Stainless Steel connection points to prevent corrosion.

This kit includes the 7-way cord, four heat shrink blue butt connectors, and three heat shrink yellow butt connectors. The wire functions include Green for Running Light (14 gauge), Red for Left Stop/Turn (14 gauge), White for Ground (10 gauge), Black for Hot (10 gauge), Brown for Right Stop/Turn (14 gauge), Blue for Electric Brake (12 gauge), and Yellow for Auxiliary (14 gauge). It also has four mounting holes with a 3/16" diameter.
