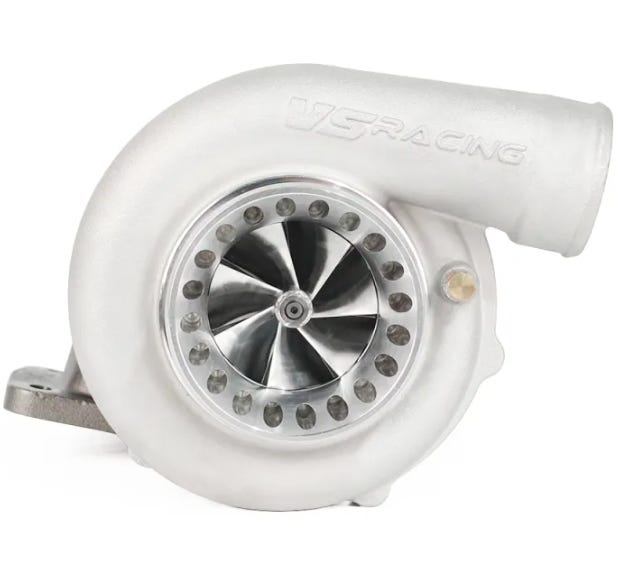

70/70 T4 Undivided Turbocharger

The VS Racing 70/70 turbocharger represents a significant advancement in small frame turbo technology. This unit is engineered with a point-milled 70mm compressor wheel paired with a new 70mm turbine exducer wheel, delivering impressive performance capabilities. Rated to support up to 1100 flywheel horsepower, this turbocharger is designed for demanding applications. It features a T4 undivided housing, available in either a .96 AR or .81 AR configuration, allowing for tuning flexibility. The compressor inlet measures 4 inches for air filter connection, with a 2.5-inch compressor outlet. The turbine outlet is a 3-inch V-band discharge, compatible with traditional T72 discharge flanges. This turbocharger utilizes a dual ball bearing system for enhanced durability and quicker spool response. Key specifications include: compressor inlet of 4″, compressor outlet of 2.5″, turbine outlet of 3″ V-band, a rated flywheel HP of 1100, AR options of .96 or .81, a T4 undivided housing, a 70mm compressor wheel, a 70mm turbine exducer, and a dual ball bearing system.
