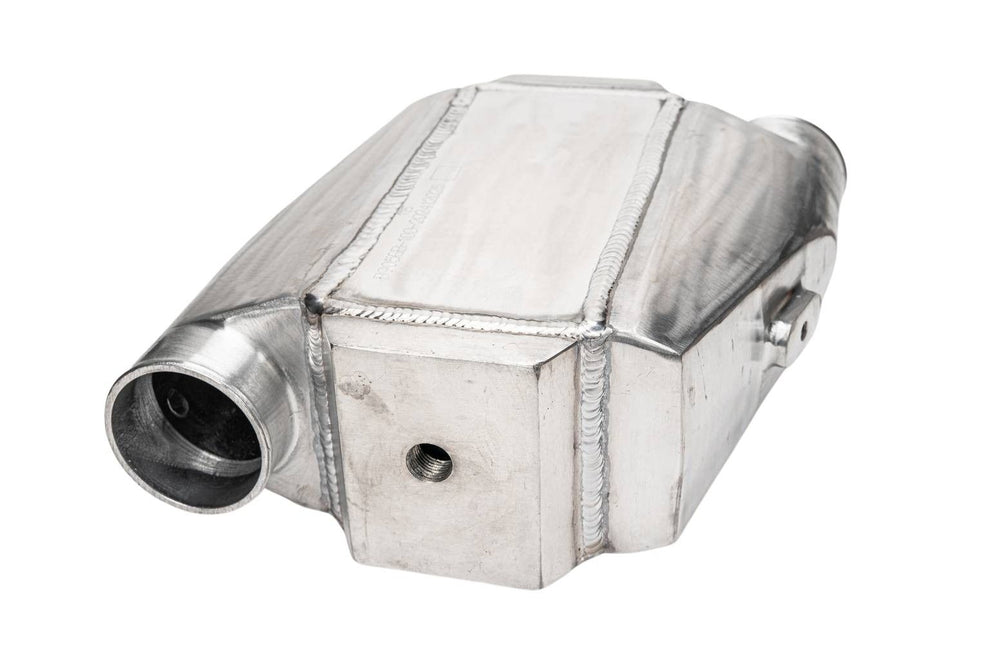

700 CFM / 600 HP Intercooler

The Shaman Equipment water to air intercooler (INT000204) is engineered to provide superior performance compared to standard front-mount intercoolers. Constructed entirely from lightweight aluminum without the use of epoxy in the core, this intercooler features a high-density fin pitch of 17 fins per inch, evenly split with 8.5 fins for air and 8.5 for water. This design contributes to its remarkable efficiency and low pressure drop. It is recommended for engines requiring up to 700 CFM and 600 HP. Key specifications include a core size of 10"x4.5"x4.5" (end tanks extend the overall dimensions), 3.0" air inlet and outlet ports, and 1/2" NPT fittings for the water inlet and outlet. The unit is rated for a maximum water/air pressure of 70 PSI. This specific model is designed with the water inlet and outlet ports located on opposite sides of the core, and it utilizes NPT threads for easier sourcing of fittings in the United States, unlike the more common BPT threads found on other intercoolers. The manufacturer emphasizes the importance of purchasing a true water-to-air intercooler, warning that some products on the market use air-to-air core designs inefficiently. This unit ensures a genuine water-to-air core with smaller water passages, enabling compact size and low pressure drop. A complete liquid-to-air intercooler system requires additional components such as a water pump, heat exchanger, and potentially a reservoir, all of which are available from the seller.
