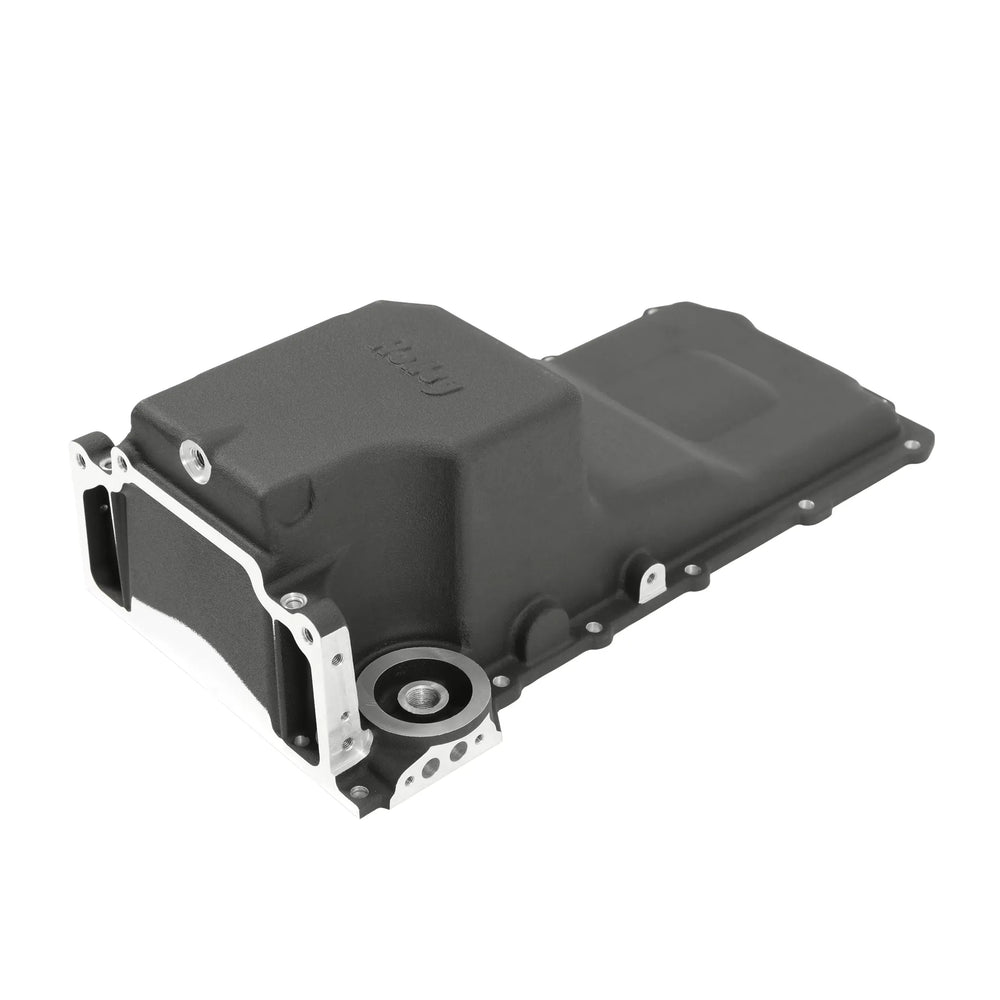

7387 GM K10 LS 4WD SWAP OIL PAN OFFROAD BLACK

Part #: 302-4BK

GM's popular LS engines find their way into a huge variety of vehicles. Unfortunately, the factory LS pans don't always fit in the vehicles we would like. Holley's new LS 4WD Off-Road Engine Swap Oil Pan is designed to help. It provides maximum clearance to the chassis and drivetrain for the K10 chassis and other LS swapped 4WD applications, plus provides an OE (Original Equipment) Style fitment for durability and proper sealing. In addition, the 302-4 and 302-4BK are compatible with all popular transmissions (SM465, NV4500, TH350, TH400, 700R4, 4L60-4L70, 4L80, 6L80 and 6L90).

Features:

• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
• Traditional high-quality cast aluminum appearance with clean exterior styling
• Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover.
• Fits GM K10 and other LS Swapped 4-wheel drive applications
• Maximum crankshaft stroke - 4.00-inches
• Compatible with hinged-door baffle #302-33 and rock shield #302-35 which can be added at any time

Fits 1973-1987 GM K10 LS Swapped Trucks and Other 4WD LS Swap Projects
