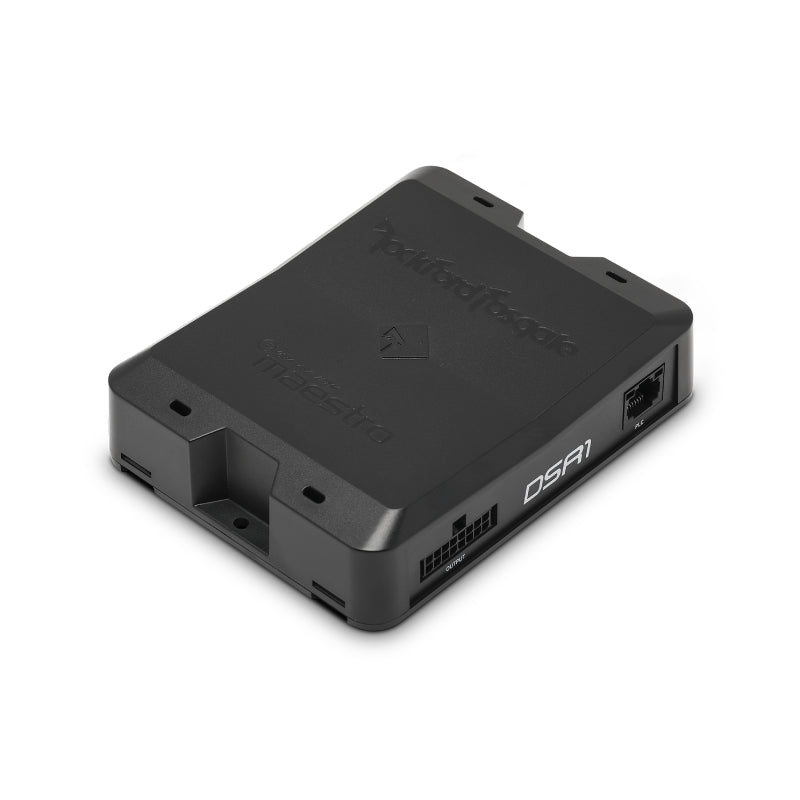

8-Channel Digital Signal Processor

The iDatalink ADS-DSR1 is an 8-channel interactive signal processor that combines a powerful Rockford Fosgate 3Sixty digital signal processor with a flashable Maestro integration module. This unit offers a comprehensive solution for upgrading factory audio systems, allowing for the replacement of factory amplifiers and speakers while retaining essential vehicle controls. This signal processor features both high-level and low-level inputs, accommodating a wide range of audio sources. It provides advanced tuning capabilities through the proprietary Rockford Fosgate PerfectTune™ software, accessible via a user-friendly app on Android and iOS devices. The DSR1 boasts an impressive 245 bands of equalization per channel, adjustable crossovers with selectable slopes (6/12/18/24/30/36/48 dB/Octave), and up to 10ms of delay per channel for precise time alignment. Key specifications include a 32-bit digital signal processing core with 147 MIPS speed, 24-bit Analog-to-Digital Converters (ADCs) with a 105 dB dynamic range, and 24-bit Digital-to-Analog Converters (DACs) with a 108 dB dynamic range. The unit operates on a 9-16 VDC range and has dimensions of 1.26" H x 4.04" W x 5.12" D. The DSR1 offers various crossover types (High-Pass, Low-Pass, Band-Pass, All-Pass) with variable frequency control from 20 Hz to 10 kHz. Proper installation requires a vehicle-specific T-harness and an aftermarket amplifier, both sold separately. The product's functionality is dependent on selecting the correct vehicle to ensure compatibility, with a process available on the iDatalink Maestro website to check listings and find solutions.
