8 Switch In-Dash Control Module Black Faceplate

This 8-switch control module features a backlit full system kill switch and is designed to maintain separation between a car's 12V/16V battery and a 24V start battery. This eliminates the need for external relays when using a 24V external starter battery, preventing potential damage from backfeeding. It includes a switch panel, relay board, and wiring harness. The unit is compatible with 16V systems and features LED light bars (red off, green on). It comes with a library of 58 race and street labels. Each switch location can be configured for on/off or momentary push action. A master kill switch allows for ultimate safety by turning off any or all switches simultaneously. The unit is 11/16” thick from front to back and mounts with Velcro, eliminating the need for dash cutting (flush mount brackets are available as accessories). It accepts a firewall keypad to control the first four switches from under the hood and includes cable connector retaining brackets. All systems carry a lifetime warranty and ship with a wiring harness, label kit, and connector kit.

Optional Features:
* **Oil Pressure Shutdown:** Allows temporary bypass of the oil pressure shutdown for starting. It monitors required low oil pressure and will shut off the engine if not reached. This system ensures longevity by preventing high currents through the oil pressure switch while maintaining a 40 amp capacity ignition circuit. A manual override switch is provided for bypass or testing. Works with any two-pin normally open contact oil pressure switch.
* **ECU/Nitrous Banking Relays:** Specifically designed for Nitrous Pro Mods using EFI. These relays can be triggered by ECU timer functions to time up to 6 Nitrous Stages, either straight kits or banked. Remaining relays can be used for other functions.

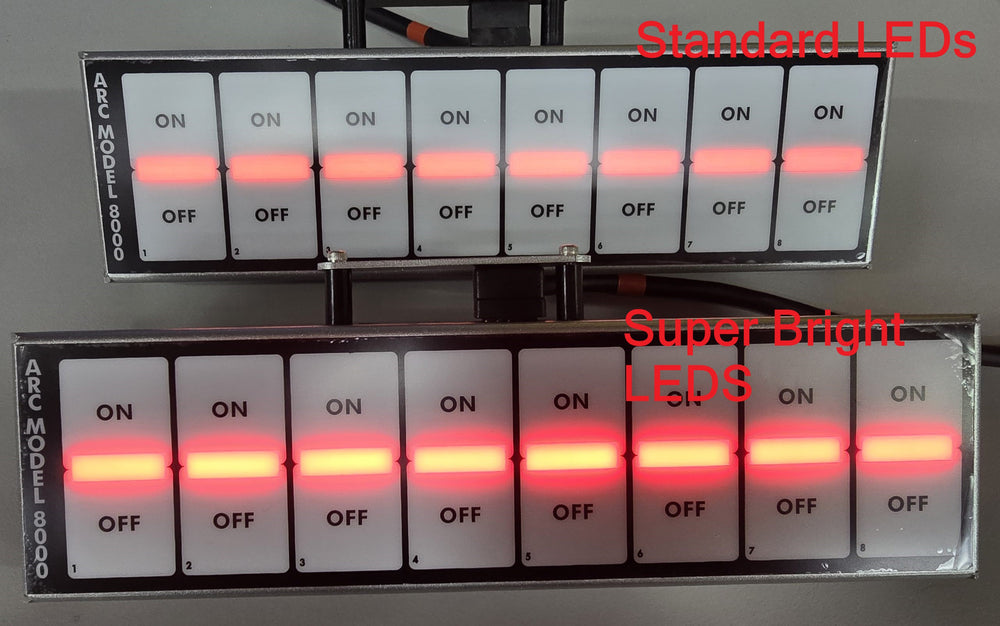

* **Super Bright LEDs:** Available for brighter red/green LEDs.

Wiring Harness:
* **Standard 9 Wire 8ft Printed Wire Harness:**
* 14 Ga Red: Ignition
* 14 Ga Yellow: Fuel Pump
* 14 Ga Violet: Auxiliary
* 14 Ga White: Starter
* 14 Ga Green: Fan
* 14 Ga Lt Blue: Water Pump
* 14 Ga Blue: Transbrake
* 16 Ga Brown: Taillights
* 14 Ga Black
* **Optional 14 Wire 15ft Deluxe Harness (includes all above plus):**
* 14 Ga Grey: Headlights
* 16 Ga Orange: Line Lock
* 18 Ga Orange: Data Logger
* 16 Ga Dark Green: Neutral Safety
* 16 Ga Pink: Bump Start
