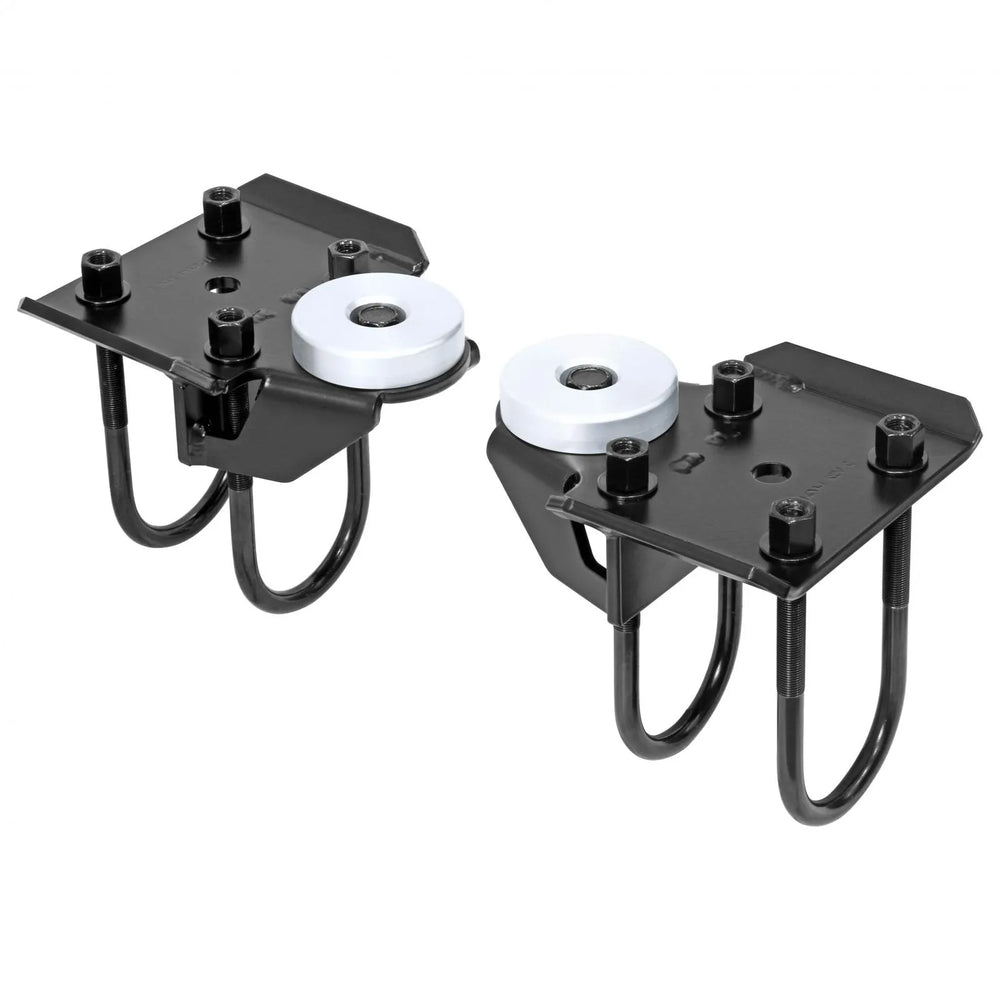

84-01 Jeep XJ Cherokee Heavy Duty U-Bolt Plate and Bump Stop Kit RockJock 4x4

Part #: CE-9031XJ

RockJock's XJ U-Bolt Plate and Bump Stop Kit for off-roaders and racers alike provides extremely heavy duty 1/4 in. thick u-bolt plates with incorporated bump stop pads. Kits include one 3/4 in. tall bump stop puck for use with the balance of the components in our RJ-XJ0000-101 suspension system, but additional bump stop pucks can be purchased and stacked to suit your bump stop spacing needs!This kit also includes a set of high quality 1/2 in.-20 u-bolts for use with 3 in. axle tube rear axle housings, however, the slotted u-bolt holes in the plates allow them to be used with 2 3/4 in. axle tubes (stock) or up to 3 1/4 in. axle tubes!Kit Fits:XJ Cherokee - All ModelsKit Includes:(2) U-bolt plate(2) 3/4 in. tall bump stop spacer puck(2) 1/2 in.-13 flanged hex head bolt(4) 1/2 in. x 6 3/4 in. deep u-bolt w/ hardwareKit Features:Heavy duty construction for off-roading or racing useIncorporated bump stop mount with ability to stack bump stop pucks to suit individual build's needsSlotted holes allow use with 2 3/4 in., 3 in. or 3 1/4 in. axle tubesKit Specs:Plate Construction=Laser cut, formed and welded 1/4 in. thick steelU-Bolt Holes=1/2 in., slotted (allows use with 2 3/4 in., 3 in. or 3 1/4 in. axle tubes)U-Bolt Spacing=for 2 1/2 in. wide leaf springsOverall Plate Length=7.16 in. tip to tipOverall Plate Width (including bump stop pad)=8.062 in.Overall Plate Width (not including bump stop pad)=4.9375 in.Overall Plate Height (to flat surface, not including folded ends)=2.250 in.Overall Plate Height (to flat surface, including folded ends)=2.750 in.Center Indexing Pin Hole=.675 in.Bump Stop Provision=incorporated and gussettedBump Stop Puck Mounting Hole=threaded 1/2 in.-13Bump Stop Puck=3/4 in. tall x 3 1/4 in. OD, billet aluminum w/ counter sunk bolt holeBump Stop Puck Bolts=1/2 in.-13 x 1 in. flanged headU-Bolt=1/2 in.-20 x 6 3/4 in. deep (tip of threads to inside of U)U-Bolt Hardware=hardened 1/2 in. flat washers and tall style 1/2 in.-20 nutsPlate Finish=semi-gloss black powder coatBump Stop Puck Finish=clear anodizeU-Bolts and Bump Stop Bolt Finish=black zinc coatedNotes:For use with 2 1/2 in. wide leaf springs in a spring-over application only!For use with 2 3/4 in. - 3 1/4 in. OD axle tubes only!For use with 1/2 in. thread u-bolts only!Additional bump stop pucks can be purchased here and stacked to the needs of the build but the builder will have to supply their own, longer hardware.Parts List:U-Bolt Plate: RJ-111400-1Bump Stop Spacer: RJ-110000-11/2 in.-13 x 1 in. Flanged Hex Head Bolt: CE-H0010U-Bolt (w/ hardware): CE-9019

Heavy Duty Leaf Spring Plates | For Use w/2 1/2 in. Springs | Incl. Integral Bump Stop Mount/3 in. U-Bolts/Bump Stop | 2 Pack
