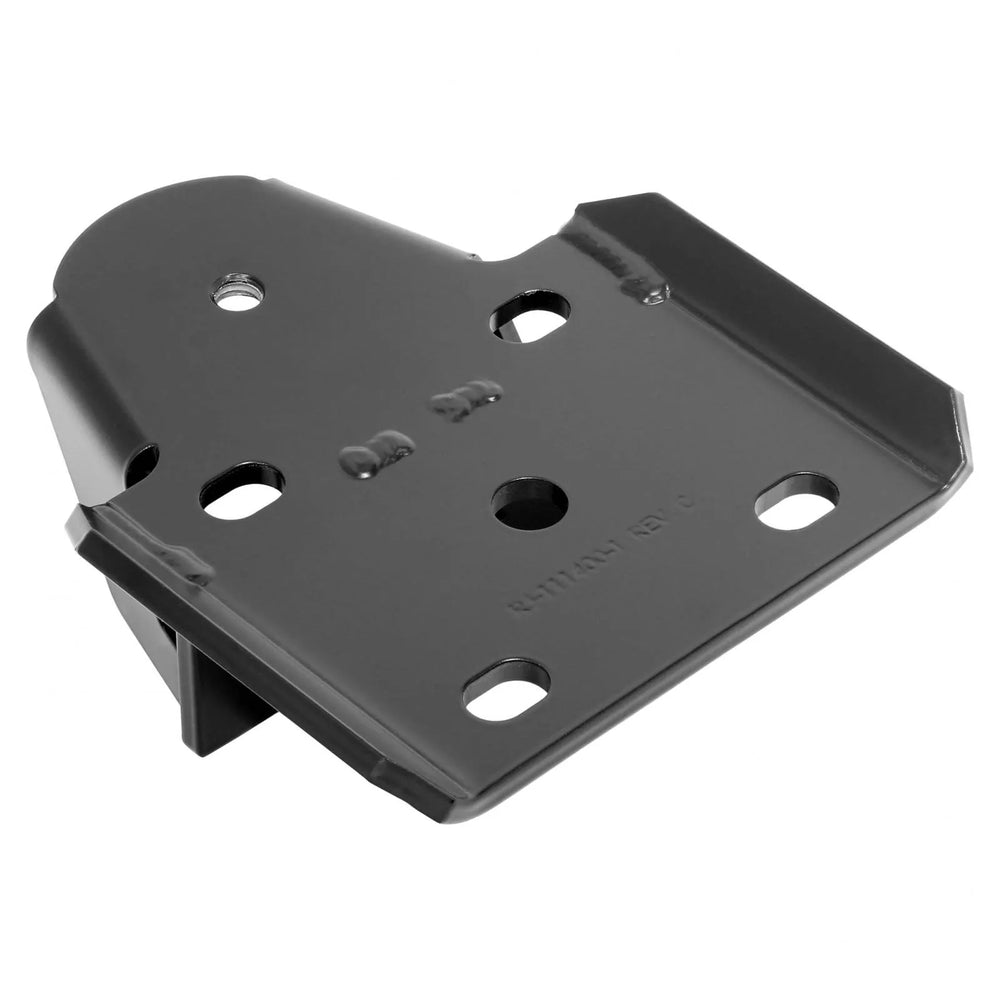

84-01 Jeep XJ Cherokee Heavy Duty U-Bolt Plate RockJock 4x4

Part #: RJ-111400-1

RockJock's XJ U-Bolt Plate and Bump Stop Mount for off-roaders and racers alike provides an extremely heavy duty 1/4 in. thick u-bolt plate with incorporated bump stop pad.Designed for use with the rest of the components in our CE-9031XJ U-Bolt Plate Kit, these plates allow you to bolt one or more (via stacking) of our RJ-110000-1 3/4 in. tall bump stop pucks to suit your bump stop spacing needs!These plates are applicable to axle tube diameters from 2 3/4 in. (stock), up to 3 1/4 in. We offer 1/2 in.-20 x 3 in. tube u-bolts under our part number CE-9019.Kit Fits:84-01 XJ Cherokee - All ModelsKit Includes:(1) U-bolt plateKit Features:Heavy duty construction for off-roading or racing useIncorporated bump stop mount with ability to stack bump stop pucks to suit individual needsSlotted holes allow use with 2 3/4 in., 3 in. or 3 1/4 in. axle tubesKit Specs:Plate Construction=Laser cut, formed and welded 1/4 in. thick steelU-Bolt Holes=1/2 in., slotted (allows use with 2 3/4 in., 3 in. or 3 1/4 in. axle tubes)U-Bolt Spacing=for 2 1/2 in. wide leaf springsOverall Plate Length=7.16 in. tip to tipOverall Plate Width (including bump stop pad)=8.062 in.Overall Plate Width (not including bump stop pad)=4.9375 in.Overall Plate Height (to flat surface, not including folded ends)=2.250 in.Overall Plate Height (to flat surface, including folded ends)=2.750 in.Center Indexing Pin Hole=.675 in.Bump Stop Provision=incorporated and gussettedBump Stop Puck Mounting Hole=threaded 1/2 in.-13Plate Finish=semi-gloss black powder coatNotes:For use with 2 1/2 in. wide leaf springs in a spring-over application only!For use with 2 3/4 in. - 3 1/4 in. OD axle tubes only!For use with 1/2 in. thread u-bolts only!Used With:Bump Stop Spacer: RJ-110000-11/2 in.-13 x 1 in. Flanged Head Bolt: CE-H0010U-Bolt (w/ hardware): CE-9019

Heavy Duty Leaf Spring Plates | For Use w/2 1/2 in. Springs | Incl. Integral Bump Stop Mount
