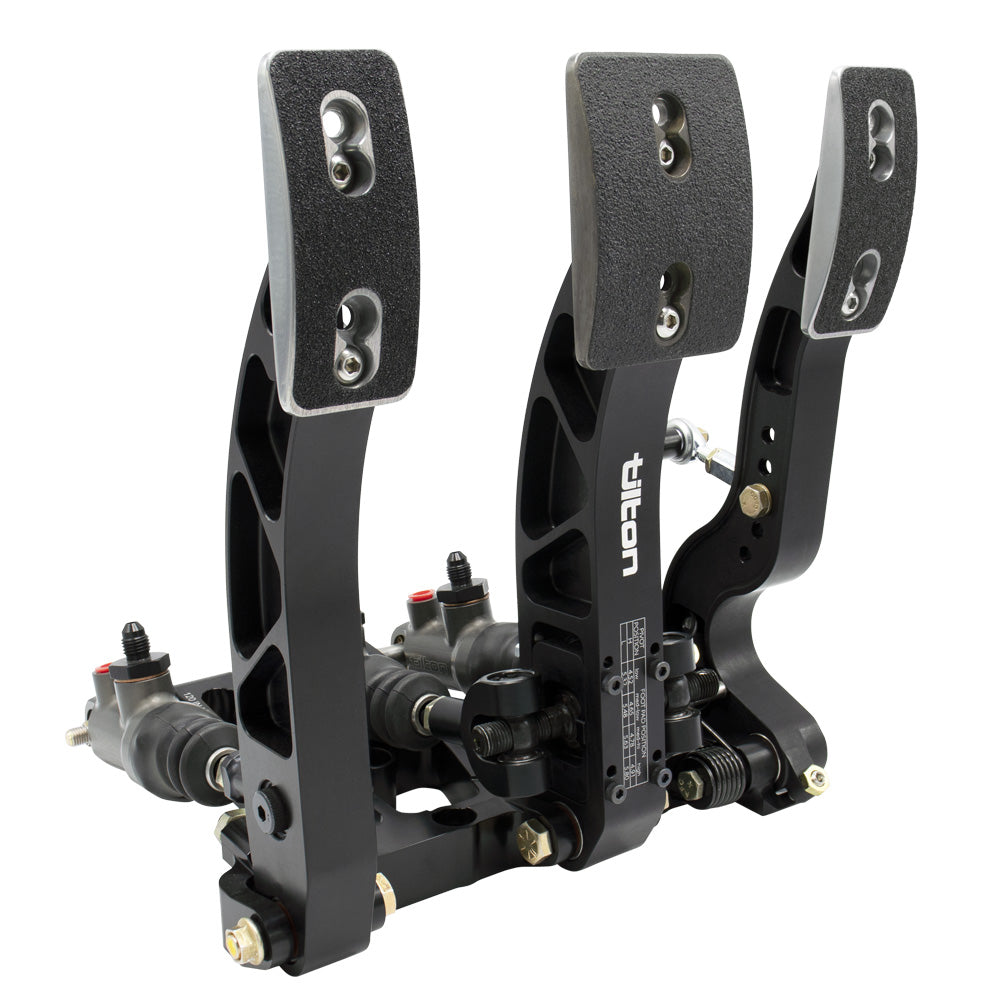

900-Series Floor Mount Pedal Assembly

The Tilton 900-Series floor mount pedal assembly offers advanced pivot-mount master cylinder technology for superior balance bar efficiency, providing exceptional driver feedback and consistent braking performance. Constructed with a robust billet aluminum frame and pedals, this assembly ensures durability and lightweight performance. The pedals themselves are adjustable, featuring anti-slip surfaces and customizable foot pads to suit individual driver preferences. The balance bar, sized at 7/16”-20, provides maximum rigidity and includes an integrated angle limit to maintain control in the event of a circuit failure. Adjustable throttle stops and a clutch stop are also incorporated to limit pedal travel and prevent over-stroking. This pedal assembly offers a range of adjustable pedal ratios, including 4.52:1, 4.65:1, 4.78:1, 4.91:1, 5.32:1, 5.48:1, 5.63:1, and 5.80:1. This adjustability allows drivers to fine-tune their brake pedal feel without needing to change master cylinder bore sizes, ensuring personalized setup for optimal control and response. The assembly weighs 5.0 lbs, excluding master cylinders.
