Brakes› Brake Systems And Components

Wilwood

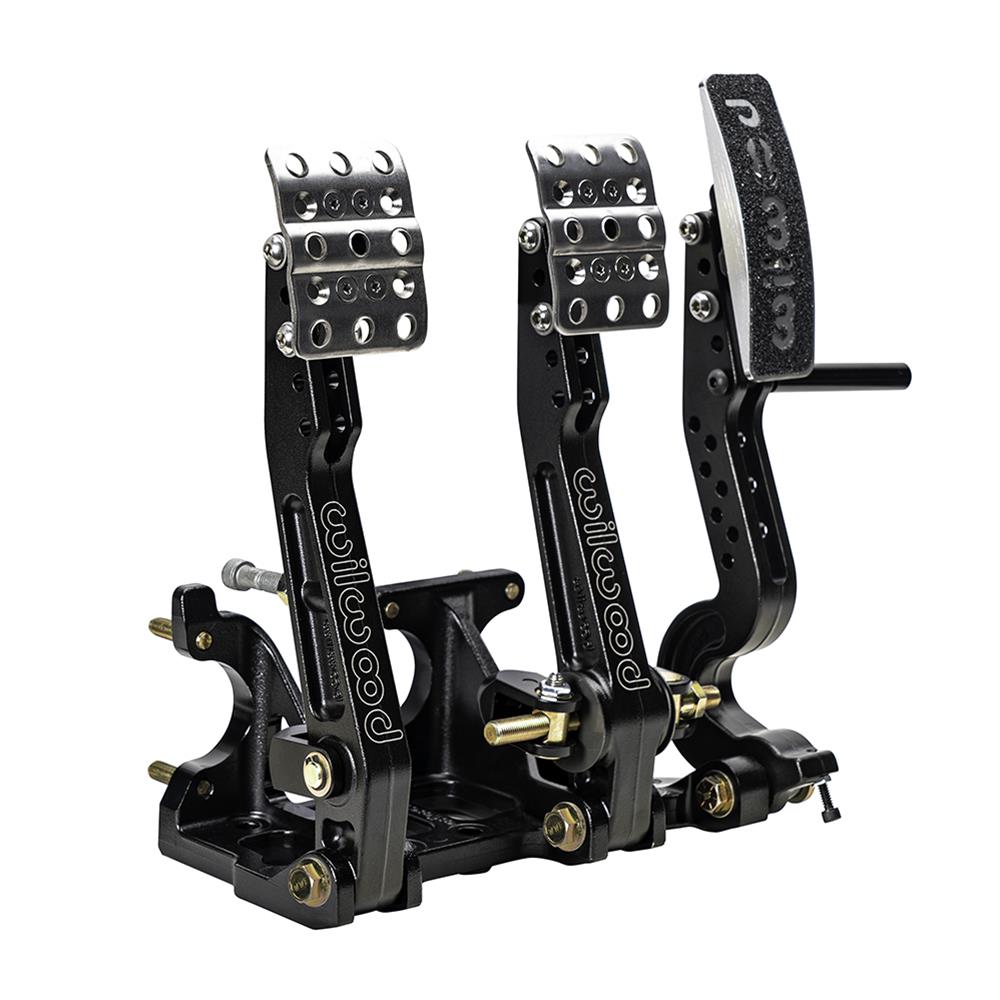

Adjustable Ratio Pedal Assembly

Name: Adjustable Ratio Pedal Assembly
Brand: Wilwood
SKU: WIL340-16602

$615.96 $487.56 Save $128.40

SKU: WIL340-16602

Free Shipping over $200

$100 Minimum Order

Non-Returnable Item

DIY PRO SHOP

Moderate — 2–4 hours

Overview

The Wilwood 340-16602 is an adjustable ratio brake, clutch, and throttle pedal assembly designed for rear-engine cars. It features a floor mount and an adjustable balance bar for fine-tuning front-to-rear brake bias. The pedal head can be vertically adjusted to provide ratios of 4.75, 5.25, or 5.75:1.

Constructed with a lightweight aluminum frame and high-strength I-beam style forged pedal arms, this assembly includes non-skid waffled pedal pads that can be laterally adjusted. It is designed to accept three Wilwood 2.25-inch vertical mount flange single outlet master cylinders, sold separately.

Show original supplier description

The Wilwood 340-16602 is an adjustable ratio brake, clutch, and throttle pedal assembly engineered for rear-engine vehicle applications. This floor-mounted unit features an adjustable balance bar, allowing for precise front-to-rear brake bias tuning. The pedal head offers vertical adjustability, enabling drivers to select between 4.75, 5.25, or 5.75:1 ratios, providing control over pedal feel and effort. Constructed with a lightweight aluminum frame and reinforced I-beam style forged pedal arms, the 340-16602 ensures durability and strength. Its non-skid waffled pedal pads are laterally adjustable to accommodate driver preference for clutch and brake spacing, ranging from 3.75 to 5.75 inches on center. The assembly is designed to accommodate three Wilwood 2.25-inch vertical mount flange single outlet master cylinders, which are available for separate purchase in various styles and bore sizes. The balance bar incorporates a positive detent stop for adjustment consistency and can be secured with a jam nut or an optional remote knob for on-track adjustments. A pin and clevis pushrod system is utilized to minimize misalignment angles, ensuring bind-free operation throughout the pedal's travel range. This pedal assembly is described as having universal fitment in some listings.

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

Brand	Wilwood
Part Number	WIL340-16602
Category	Brakes
