ADVANCE ADAPTERS 4L60 X TOYOTA L C-19 SPLINE

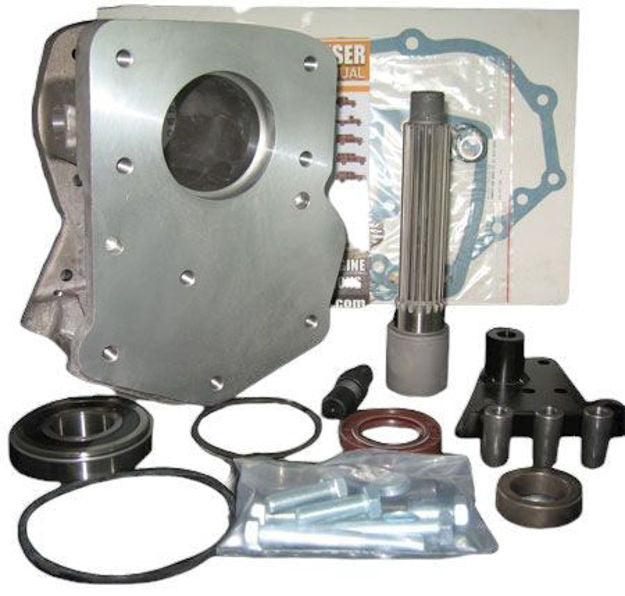

This adapter kit facilitates the connection of a GM 4L60E 2WD transmission (with a non-removable bellhousing) to a Toyota Land Cruiser transfer case (specifically August 1980 to 1989 models with a 19-spline input gear). The adapter itself is 6.750 inches in length, resulting in a total transmission and adapter length of 30.50 inches. It is constructed from 356 T6 heat-treated aluminum alloy. The kit includes the adapter housing, a 19-spline spud shaft, a GM VSS sensor, a transfer case shifter bracket, transfer case bracket spacers, snap rings, a retainer, a sealed bearing, a gasket, a nylon lock nut, fastening hardware, and detailed instructions. The kit requires the use of a stock 2WD output shaft with a stock reluctor ring from the 4L60E transmission, which will need to be shortened according to the provided instructions. The adapter housing is pre-drilled and tapped for the reluctor ring pickup, and the necessary GM sensor is included for proper transmission operation.
