Advanced AGM Racing Battery

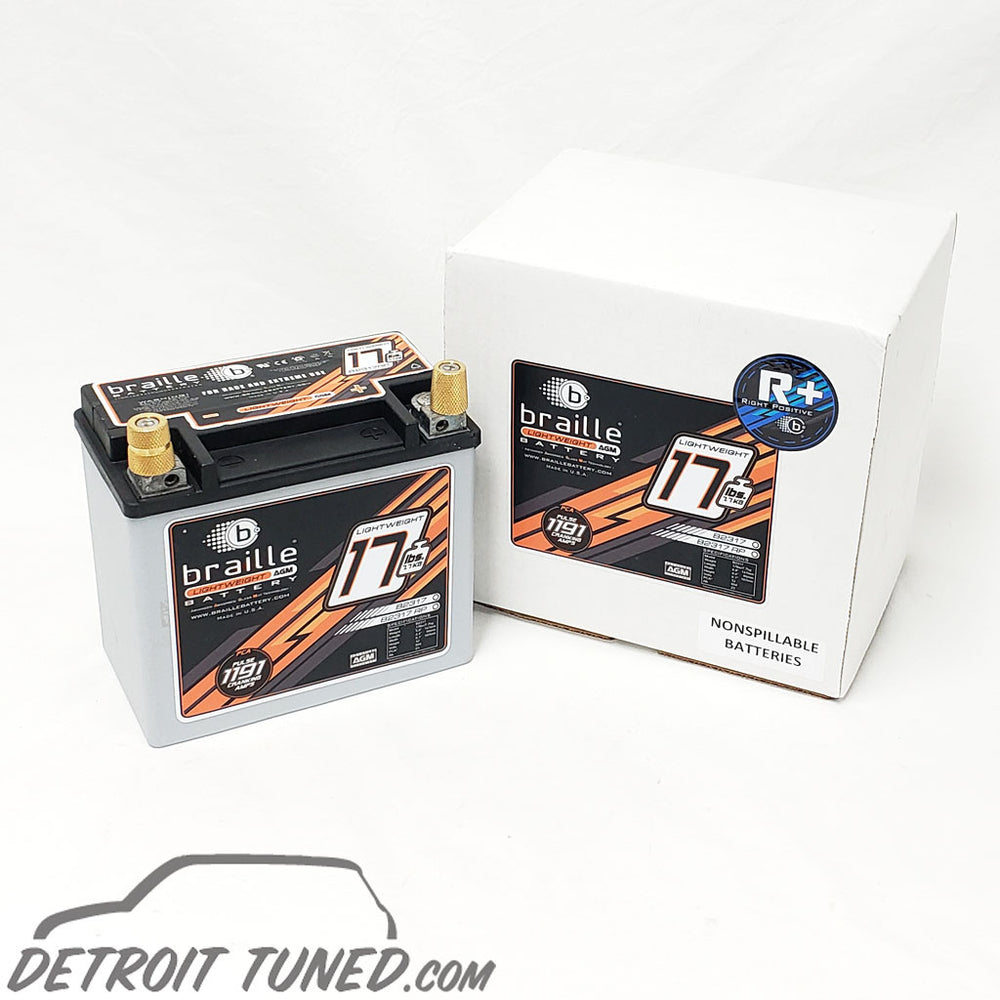

The Braille Battery B2317 is a lightweight advanced AGM racing battery, weighing in at only 17 lbs. It serves as a high-performance upgrade from traditional lead acid batteries, offering substantial weight reduction alongside enhanced power output and a lifespan up to twice as long as conventional options. Key technical specifications include a 5S PCA of 1191 and a 10s PDC of 1072. The battery has a 12V rating and a capacity of 23.0 Ah (276 Wh). The B2317 is also suitable for “Total Loss” applications where an alternator is not present and is specifically engineered to withstand high shock and vibration environments. Physical dimensions for the B2317 are 6.8 inches in length, 4.0 inches in width, and 6.1 inches in height. It features a durable PB (lead-acid) chemistry and steel terminal blocks with M6 bolts for secure connections. The polarity is configured as Left +. Operating temperature ranges are broad: 0°C to 50°C for charging, and -40°C to +60°C for both discharge and storage. The recommended recharge voltage is between 14.4V and 14.6V, with a maintenance charge voltage of 13.8V.
