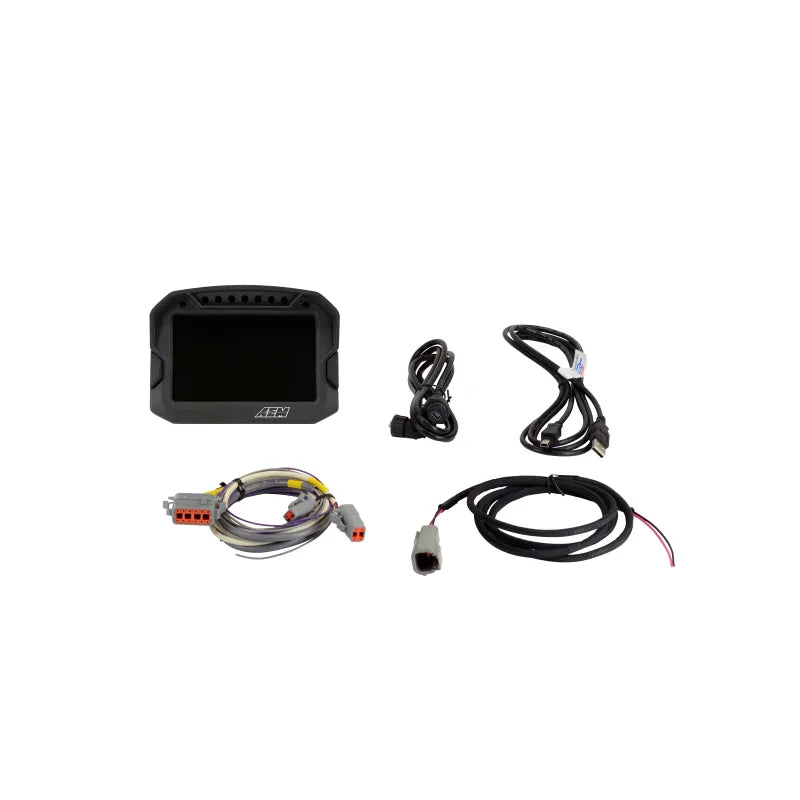

AEM CD-5L Carbon Logging Digital Dash Display

The AEM CD-5L Carbon Digital Dash Display features a full-color screen in a carbon fiber composite housing. It includes seven programmable/dimmable LEDs for RPM/shift indication, user-programmable brightness, and large buttons for easy page changes. It accepts channels from two independent CAN bus inputs, allowing integration with over 250 non-AEM devices and 2008-up stock ECUs via an optional OBDII adapter cable (PN 30-2217). It can also be installed on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately). The CD-5L is available with or without 200Mb internal logging and an on-board GPS receiver. It has seven programmable pages, including alarm, on-change, and start-up pages, with over 200 supplied SAE and custom warning icons.
