AEM EV 8 Button Keypad CAN Based Programmable Backlighting

Part #: 30-8400

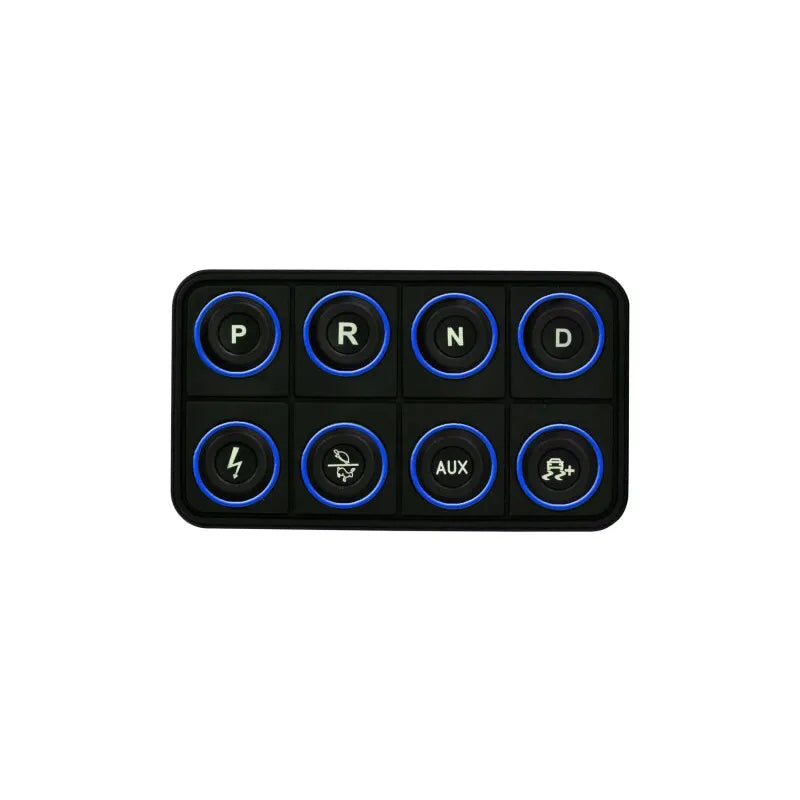

The AEM EV 8-Button CAN Keypad (PN 30-8400) puts control at your fingertips in EV street-conversion and motorsports vehicles. It is a VCU expansion device that allows you to control vehicle functions by programming them in the VCU software, and then send these commands via CAN bus to a VCU200 or VCU300 Vehicle Control Unit. Functions like Ignition, Park, Reverse, Neutral and Drive, as well as two map switching functions like performance level and traction control, are all controlled from a central location through a sleek, vibrant interface. The 8-Button CAN keypad has nine backlit colors that are all fully programmable using AEMcal software. The LEDs deliver a lively opening ceremony when powering up, which is user-programmable. Users can select backlighting for each individual button, or group of buttons, and have the backlighting for whatever mode is selected change color so you always know what drive mode, power mode, or traction mode you are in! More than just aesthetics though, the backlighting is used to alert you to any potential issues and whether everything is functioning properly to keep you safe. For instance, when the Ignition switch is pressed three color states verify that everything is working correctly. When the contactors are open there is no backlight, and when the pre-charge process begins the backlight turns yellow. Once the pre-charge process is complete and the contactors close the backlight turns green to notify you that the vehicle is safe to operate, and if a fault is detected the backlight turns red. The 8-Button CAN keypad has a ruggedized rubber enclosure with two mounting studs on the back, and in addition to color-changing backlighting, positive-feel buttons provide a tactile response that takes the guesswork out of whether or not you pressed the button hard enough.

EV programmable button pad for use with VCU200 or VCU300
