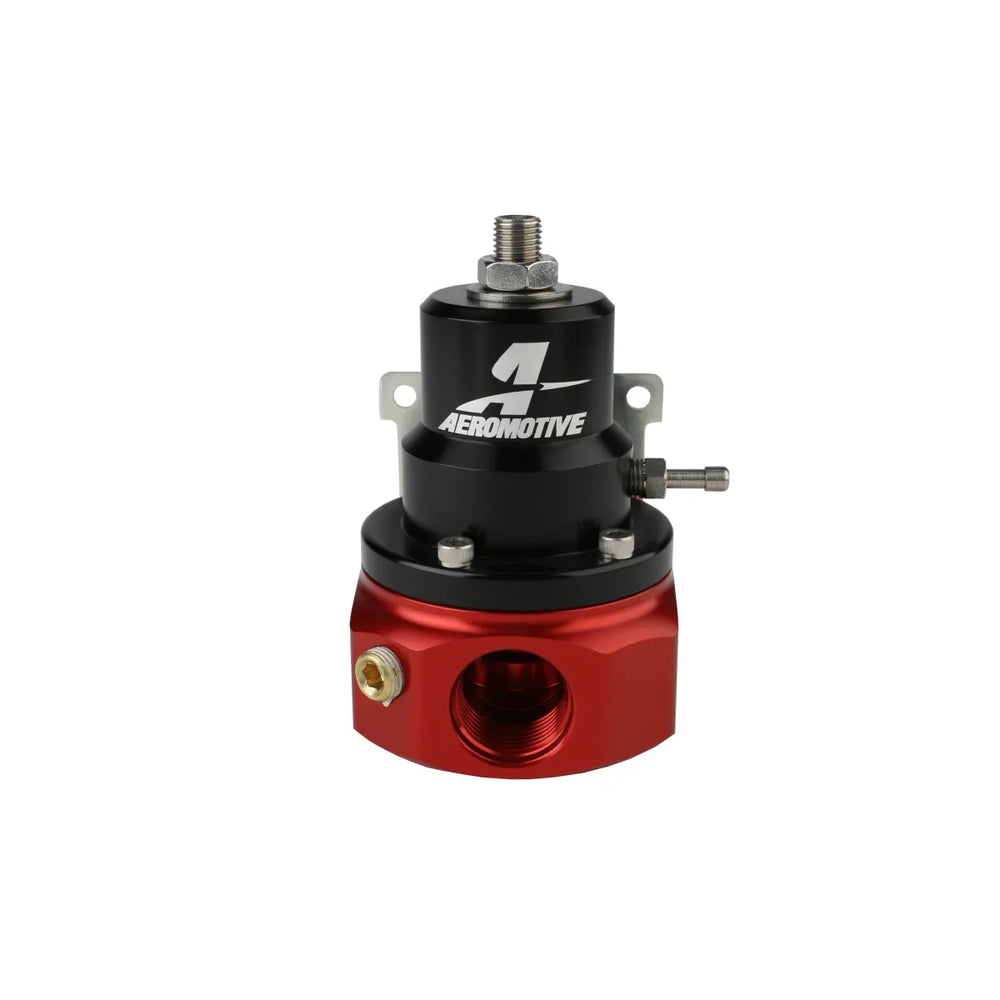

Aeromotive A1000 4-Port Carbureted Bypass Regulator - 4 x AN-06 / 1 x AN-10

Part #: 13224

The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carbureted application. These regulators are perfect for naturally aspirated or blow-through supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13224 provides (4) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.

Fuel Pressure Regulator - A1000 - 3 to 15 psi - In-Line - 10 AN Female O-Ring Inlet - Four 6 AN Female O-Ring Outlets - 8 AN O-Ring Return - Bypass - 1/8 in NPT Port - Black / Red Anodized - E85 / Gas / Diesel - Each
