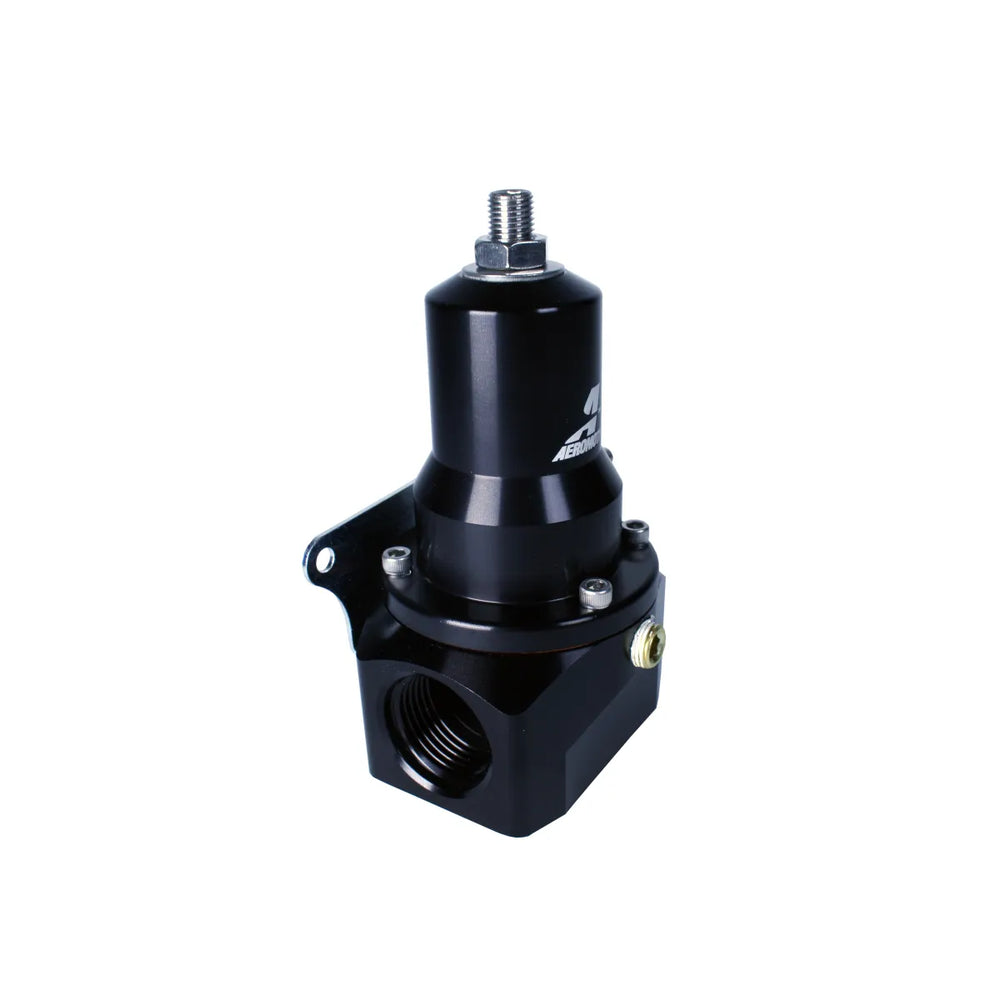

Aeromotive Adjustable Regulator - 30-120 PSI - .500 Valve - 2x AN-12 Inlets / AN-12 Return

Part #: 13137

Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It s designed for use with Belt or Hex Drive Fuel Pumps. Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port. 0.500 high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps. Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.

Fuel Pressure Regulator - Extreme Flow EFI - 30 to 120 psi - In-Line - 12 AN Female O-Ring Inlet - 12 AN Female O-Ring Outlet - 10 AN Female O-Ring Return - 1/8 in NPT Port - Black Anodized - E85 / Gas / Diesel - Each
