Aeromotive Regulator - 30-120 PSI - .500 Valve - 4x AN-08 and AN-10 inlets / AN-10 Bypass

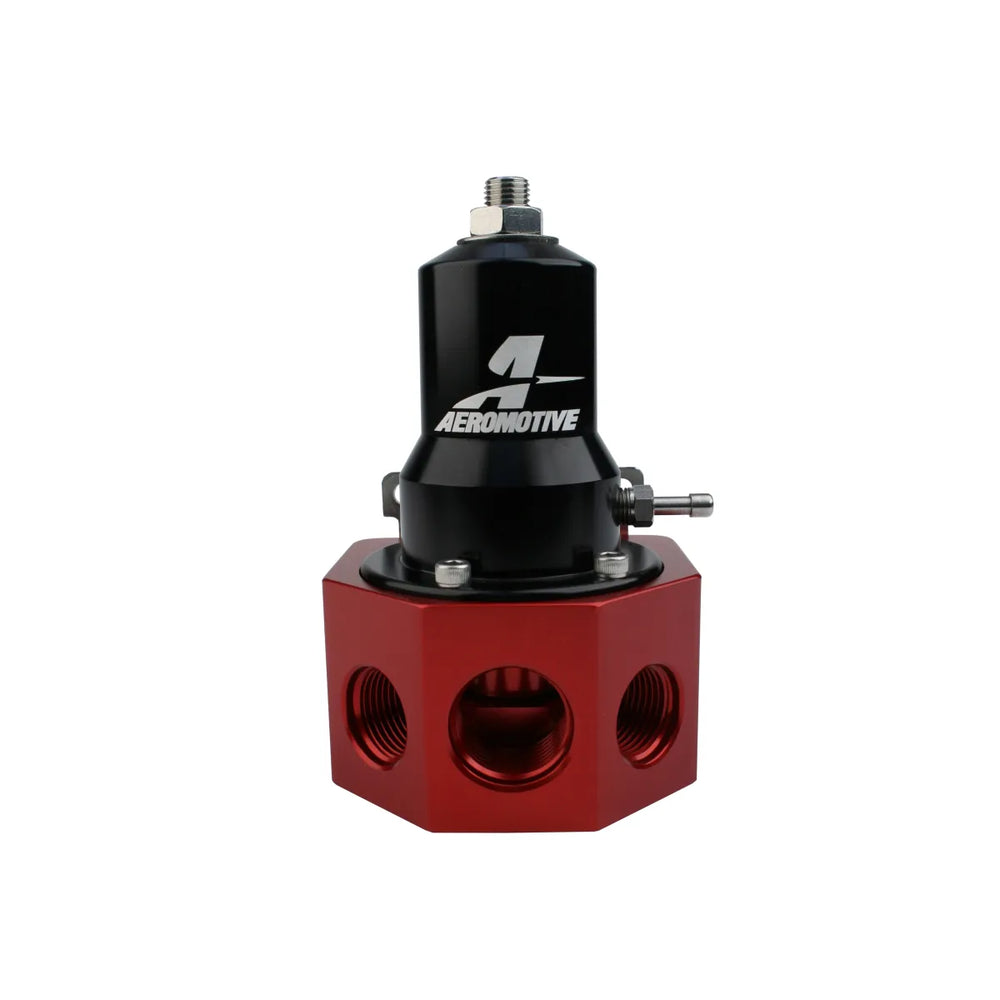

The Aeromotive 13133 Extreme Flow EFI Fuel Pressure Regulator is designed for use with Belt or Hex Drive Fuel Pumps. It features an expanded, 5-port body with one AN-10 plus four AN-08 inlet/outlet ports, and one AN-10 return port. It features a 0.500" high flow valve/seat, capable of handling 7-26 GPM fuel pumps. Dual springs expand the operating pressure range while maintaining a low profile and reduced weight. The standard spring (installed) supports 30-75 PSI base fuel pressure, and a high-pressure spring (included) supports 75-120 PSI base fuel pressure. It also supports vacuum and boost reference on a 1:1 ratio with PSI. This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
