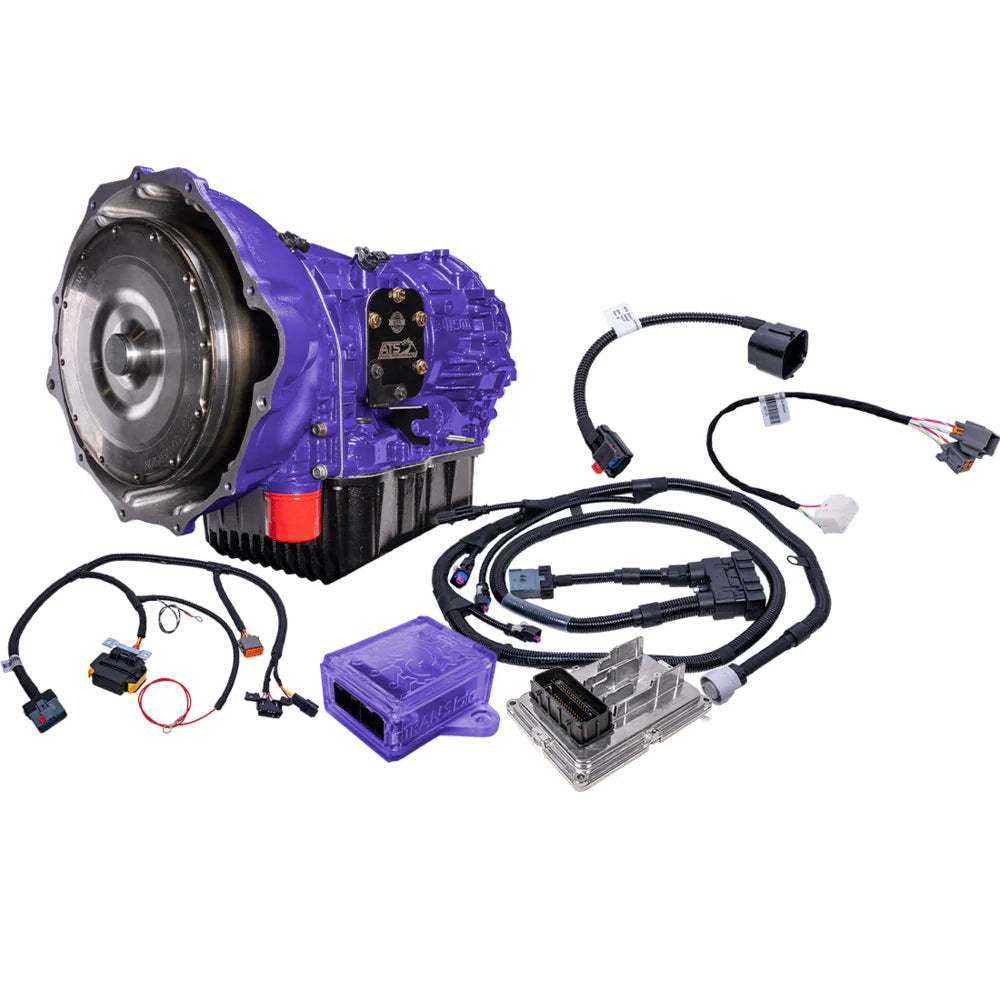

Allison Conversion Kit

The ATS Diesel Performance Full Allison Conversion Kit offers a comprehensive solution for upgrading your 2007.5-2009 4WD Ram truck with a 6.7L Cummins engine. This kit replaces the factory 68RFE transmission with a robust Allison LCT1000, providing increased reliability and the capability to handle higher power levels. Engineered with ATS's proprietary TRANSLator technology and a patent-pending Allison to Cummins Bellhousing, this conversion kit ensures seamless integration of all factory features. This includes push-button start, tow/haul mode, electronic range select, and electronic transfer case functionality. The TRANSLator module allows the Allison TCM to communicate with the Ram ECM, resulting in a nearly plug-and-play installation. The specific kit (MPN 319-914-2326) is designed for 2007.5-2009 models with the 68RFE transmission. The available stages offer varying levels of internal component upgrades, from the Stage 1 which includes the ATS-built Allison transmission and a five-star torque converter, up to Stage 5 which incorporates billet input and output shafts, a billet intermediate shaft, and a billet P2 carrier, C2 hub, and modified P1 sun gear planetary assembly. Higher stages also come with increased horsepower ratings, reaching up to 1100 hp / 2200 ft-lb in Stage 5. Note: For proper installation and operation, the vehicle's ECM will need to be flashed to an Aisin transmission calibration. It is crucial to ensure this procedure can be completed before proceeding with the installation.
