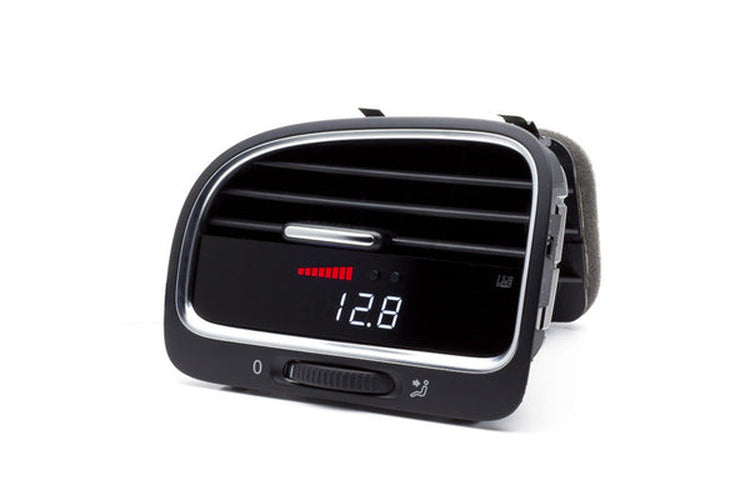

Analog Boost Gauge

The P3 Analog Gauge offers enhanced user control for Mk6 Golf, GTI, and R models (2009-2013), allowing you to monitor crucial engine data without occupying your OBD2 port. This gauge is not plug-and-play and requires a boost/vacuum hose connection to the engine, along with wiring for power, ground, and optional analog inputs. The gauge system features four available analog readouts: dedicated analog boost input (boost tap not included), two additional analog inputs (brown and blue wires) for any 0-5 volt linear output sensor such as oil pressure, oil temp, coolant temp, or EGTs, and a battery voltage readout via power and ground wires. An optional auto-dim feature is available via a green wire, which can be connected to a circuit that powers only when the headlamps are on. This enables the display to automatically dim. The base kit includes the integrated display, Analog Box control unit, main harness, hard-wire harness, analog boost sensor, tubing, zip ties, and wire taps. Optional add-ons include an OBD2 power/ground tap harness for easier wiring, an ESVA adapter for ethanol content and fuel temp readings, and an LC-2 Wideband O2 Sensor Kit for Air/Fuel Ratio monitoring. The P3 Analog Gauge is designed to install discreetly into an OEM vent, maintaining an OEM+ aesthetic while providing a bold, bright display that is easy to read at a glance. The electronics are built to withstand extreme temperatures, functioning from -94°F to hundreds of degrees Fahrenheit.
