Antirock Sway Bar Kit Bronco Rear Bolt-On Forged Arms RockJock 4x4

Part #: RJ-286200-101

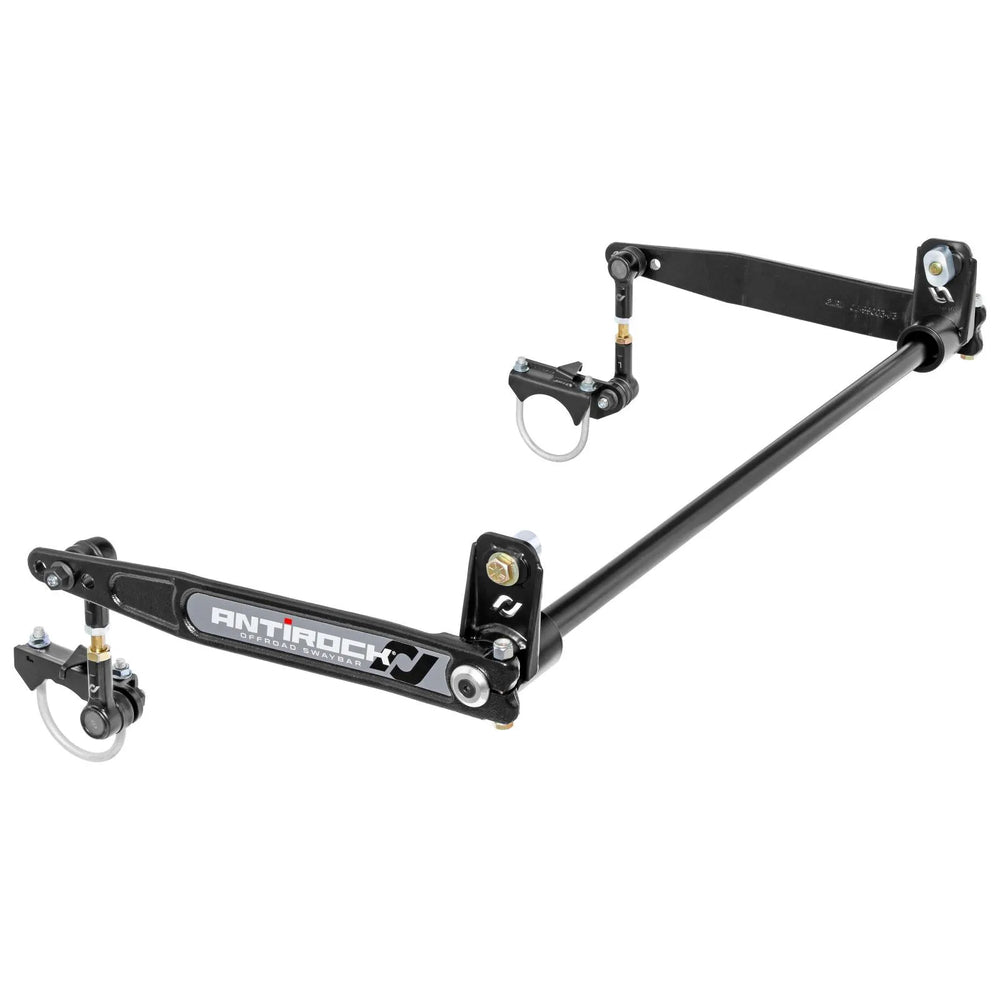

RockJock's Antirock Sway Bar Kit for the rear of all 2021-up Bronco vehicles helps free up suspension articulation to increase off-road traction. By constantly providing resistance to the articulating wheel, the Antirock forces traction to opposite wheels.The Antirock sway bar easily bolts on with hand tools, directly replacing the vehicle's stock rear sway bar. The Antirock does not require disconnecting for off-road use!The sway bar torsion bar is forged from 4130 heat treated chromoly for ultimate strength, which is the same quality used in professional off-road competition sway bars.Kit Fits:21-up Bronco (4-door) - All Models21-up Bronco (2-door) - All ModelsKit Includes:Sway Bar Torsion Bar (.850 in. diameter)Fabricated Steel Frame BracketsFabricated Steel Axle BracketsForged Chromoly Sway Bar ArmsDelrin Sway Bar BushingsAdjustable Sway Bar End LinksBillet Steel Sway Bar End Link Mounting KitBrake Line Relocation BracketsAll Required Hardware and step-by-step instructionsNotes:Exhaust modification required! - installation of this kit requires you to install a high-clearance axle-back exhaust pipe and muffler (see the 6th. photo in the gallery).We have worked with AFE to create a simple to install, high clearance piece under item number 49-43147, however other exhaust manufactures likely produce compatible systems (Slide 7 in the photo gallery for a dimensional diagram).Body Roll - Antirock sway bar equipped vehicles will exhibit more body roll than vehicles equipped with the stock sway bar. Antirock sway bars may be used on the street, however, they do not provide the same handling characteristics as the stock sway bar.End Links - Out of the box, the length of the sway bar's vertical links that are included in this kit are intended for use with stock height vehicles. Depending upon your specific vehicle's lift, you may obtain shorter or longer links to suit, here. Additionally, all of the link rods may also be trimmed in length for fine tuning purposes.Fitment - It is quite common for factory frames to vary in width. If you find your vehicle's frame to be on the narrower side, the Antirock arms can simply be slid on until they are snug against the Antirock bushings and then the arms clamped down.However, on some frames the arms absolutely have to hold true width to clear bolt heads on the side of the frame, etc. In instances of this nature, see our CE-9901D-SP4 shim pack to assist in fine tuning.Parts List:Sway Bar Torsion Bar: RJ-204002-1Steel Frame Brackets (pair): RJ-281202-103Steel Axle Brackets (pair): RJ-281201-103Forged Sway Bar Arms: RJ-282200-101Delrin Sway Bar Bushing: CE-9901DAdjustable Sway Bar End Links: RJ-283100-101Brake Line Relocation Bracket: RJ-281200-1Brake Line Relocation Tab: RJ-181400-31/2 in.-20 x 1 1/2 in. Long Hex Bolt: RJ-501201-11/2 in. Flat Washer: CE-H00141/2 in.-20 Internal Frame Rail Nut: RJ-522200-13/8 in.-16 x 82mm ID U-Bolt: RJ-511203-13/8 in.-16 Serrated Flange Nut: CE-98233A3003/8 in. Flat Washer: CE-90108A4158mm-1.25 x 16mm Long Serrated Flanged Hex Head Screw: RJ-501106-18mm-1.25 Lock Nut: RJ-502106-1Sway Bar Arm Hardware Pack: CE-99005ASway Bar Arm Stickers: RJ-720300-101
