Easy — 1–2 hours
Description

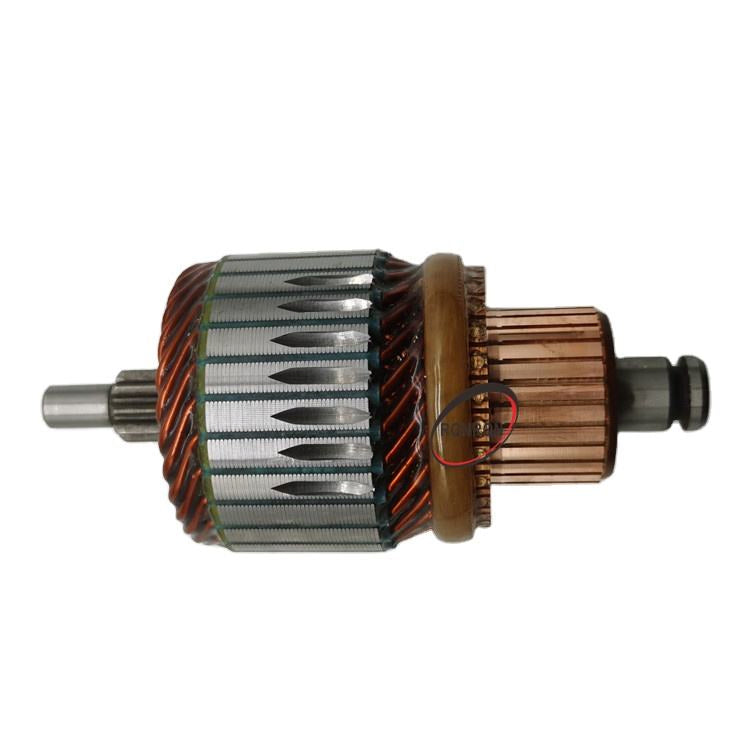

This armature has a length of 113.5mm, with specific measurements for the commutator end (CE) and drive end (DE) outer diameters. It also includes details on the distance from the CE and DE to the bearing bushing stop, the number of commutator bars (28), and the number of straight splines (9).
Fitment
Fitment Guaranteed
Don’t gamble
on fit.
Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.
Available on iOS & Android
Specifications
| Brand | Bosch |
| Part Number | B00G 1004011212 |
