Artec Industries 1970-2010 Chevrolet K30 K20 14 Bolt Combo Kit Single Rear Wheel (Srw)

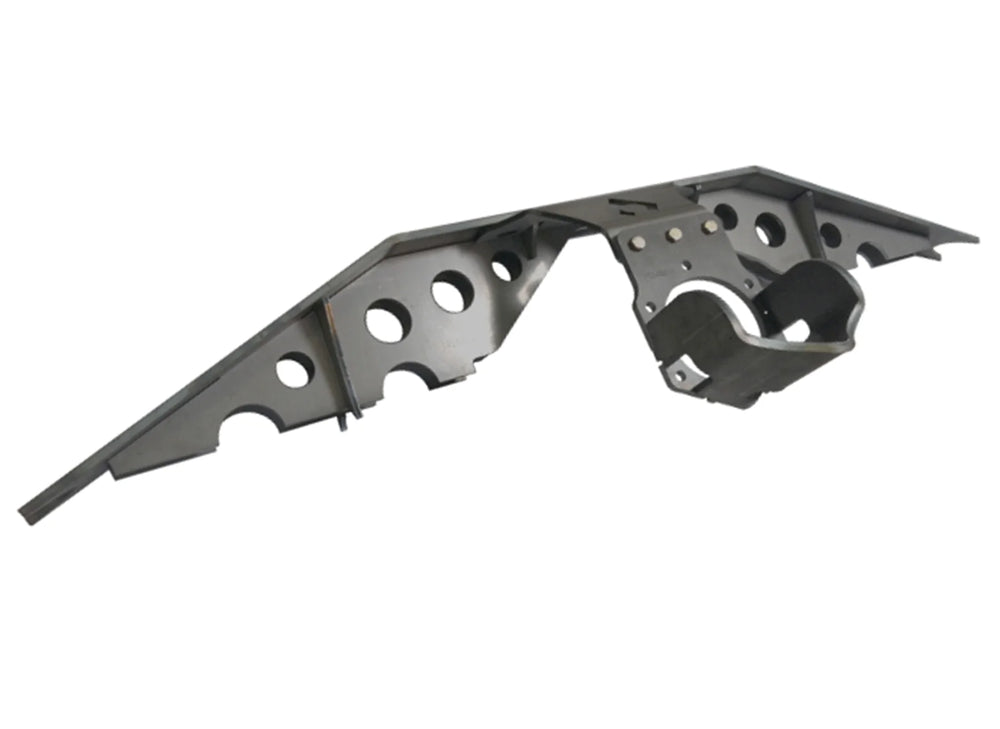

Artec Industries' NEW 14 Bolt Rear Axle Truss is a heavy-duty truss system designed to reinforce your entire axle while also providing a flat surface to mount your upper links. It features a 3/8" thick truss top and 1/4" thick gussets, CNC cut and bent for perfect fitment. The low-profile design allows for optimal link joint mounting geometry (about 8 inches from the axle centerline). The truss spans the entire length of the axle for complete reinforcement of the axle tubes. It is reinforced using interlocked 1/4" thick gussets for maximum strength and easy assembly. The overall low-profile design ensures your axle is stronger, sleeker, easier to fit into any vehicle, and less likely to interfere with vehicle components. Includes 3/8" grade 8 hardware. Requires welding from a competent welder. DRW truss measures just under 46 1/8" and SRW truss is just under 51 1/4" total length. Optional 14 bolt Pinion Guard and bridge can be added for enhanced protection, rigidity, and customizable installation.
