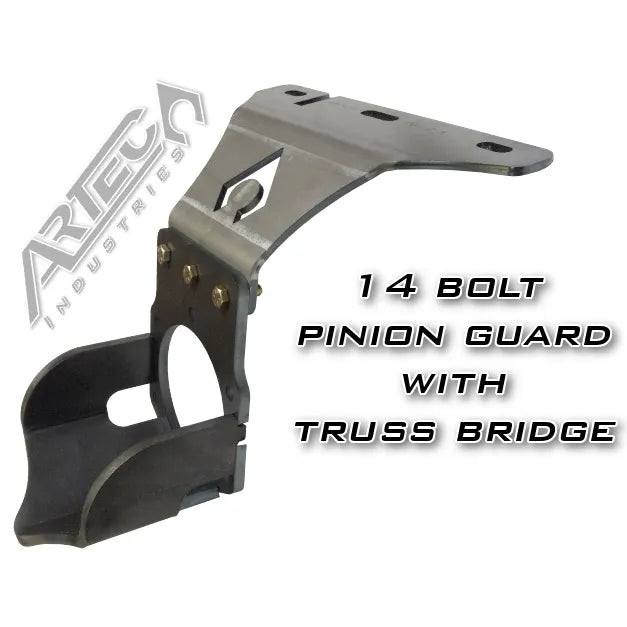

Artec Industries 1970-2010 Chevrolet K30 K20 14 Bolt Pinion Guard With Truss Bridge (High)

Part #: PG1402

Artec Industries 14 bolt Pinion Guard is designed to keep your vulnerable pinion out of the rocks and Inch one piece. CNC cut from 3/8 inch thick mild steel, this guard is meant to take the worst you and the rocks can dish out. Included bridge to connect to your Artec 14 bolt truss. Bridge is CNC cut and formed from 1/4 inch thick mild steel and adds rigidity to your existing truss. With minor modifications, the bridge allows the Artec 14 bolt truss to still be inchclockable inch while installing. Bridge bolts on to pinion guard and welds to truss.Features:Sold as EachThere are 2 options For this item, the High - PG1402 and the inchLow inch - PG1403. The High version is compatible with the TR1402 and TR1405 Rear Trusses and the Low version is compatible with the TR1401 Rear TrussIncludes 3/8 inch grade 8 hardware.Requires welding from a competant welder.See also Pinion Guard to be used with 14 Bolt Rear Truss

~(13.5 lbs. 12X9X6)~ 14 Bolt Pinion Guard W/Truss Bridge High Artec Industries
