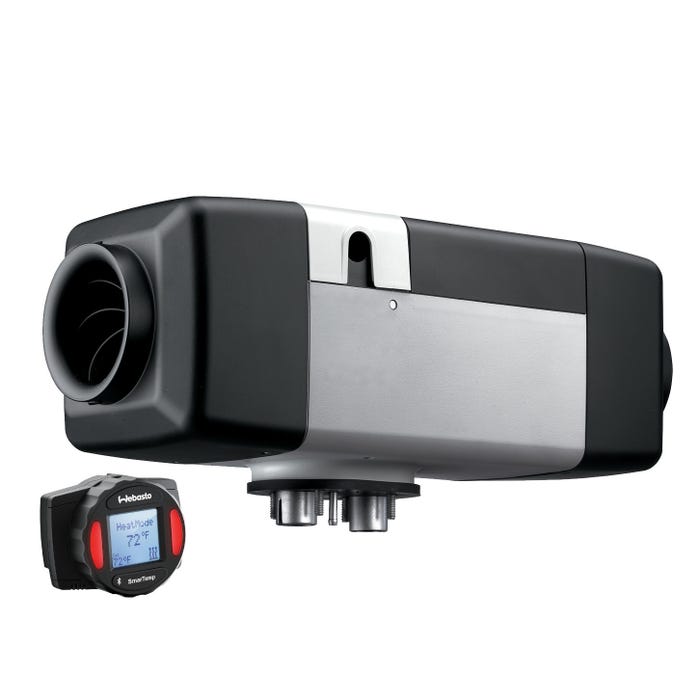

AT55 EVO 24V D MARINE SMTP 3.0_BT K

Diesel Powered Air Heater with SmarTemp 3.0 Bluetooth control and complete installation kit
Heat output: 5,100 - 17,000 BTU per hour (18,00 BTU per/hr in boot power level)
Boost Power Level may be utilized for a max duration of 30 minutes
Diesel Fuel consumption: 0.04 – 0.15 gallons per hour (.17 gallons per hour in boost power level)
24 volt DC operation
Air Outlet Diameter: 90mm
Air Flow: 117.7 cubic feet per minute (129.4 cfm at boost power level)
Length: 16.6 inches (423mm)
Width: 5.8 inches (148mm)
Height: 6.3 inches (162mm)
Kit includes; Air Top 55 Evo Heater, SmarTemp 3.0 Bluetooth Control, Cold Air Inlet, Hot Air Outlet/Ducting, Combustion Air Inlet, Exhaust Outlet, Fuel Metering Pump, Fuel Filter, Fuel Standpipe
Hot Air Outlet Ducting Included in this kit: 90mm Ducting x 5M(2), 90mm Ducting x 1.5M(2), 60mm Ducting x 2M (3), 90mm 45 degree air outlet(1), 90mm 90 degree air outlet(1), 60mm closeable air outlet(2), 60mm 45 degree air outlet(1) Union Nuts(5), 45 Degree Branch Piece 90mm/60mm/90mm(1), Bag of Duct Clamps(1)
High-output, compact and quiet - ideally suited for the most rigorous requirements
5.5 kW power for fast heating
Very low electrical power consumption due to new Intelligent Blower Control
Improved flame detection through exhaust gas temperature sensor
Automatic cold start function for quick warm-up
Improved air intake silencer
Vibration dampers for fuel line
Very silent operation due to lower blower speed and silent fuel pump (DP42)
In a sailboat each cabin and head compartment has its own air outlet
One outlet should be non-closable
The temperature sensor as well as the main air outlet is in the salon
The fresh air is taken in via the rear locker from outside
In powerboats, the heater is usually placed in the engine compartment
The fresh air has to be taken in from outside the engine room
Special attention needs to be paid to a fire-resistant fuel supply system
One of the outlets should be non-closable
SmarTemp Control 3.0 Bluetooth:
Bluetooth connection to the Webasto SmarTemp 3.0 App
Adjustable LCD backlight
Control, change settings, access TechWebasto.com and diagnose the heater via Webasto SmarTemp 3.0 App
Downloadable users settings to the Webasto SmarTemp 3.0 App. File can then be used to prog multiple SmarTemp Control 3.0 Bluetooth units via the Webasto SmarTemp 3.0 App
