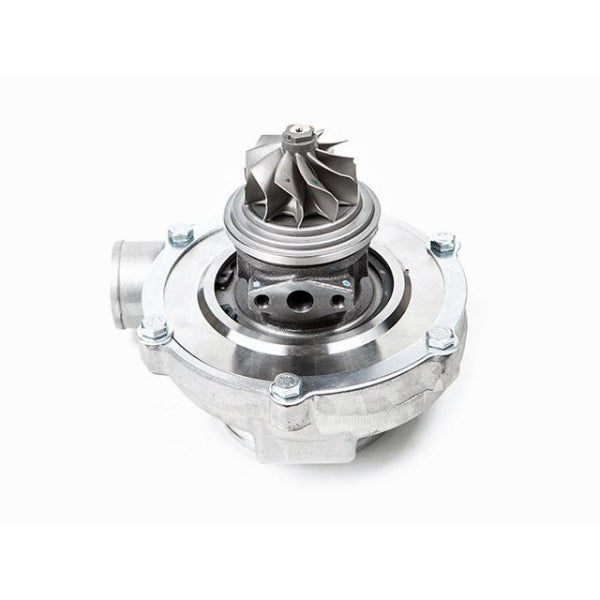

Ball Bearing Turbo Cartridge CHRA for Garrett GTX3076R

The Kinugawa Turbo Ball Bearing Turbo Cartridge CHRA is a high-performance replacement designed specifically for the Garrett GTX3076R Turbocharger (part numbers 803713-1 / 700177-42). It is crucial to note that this CHRA is NOT compatible with the GT3076R model. This cartridge features a robust ball bearing (roller bearing) thrust bearing kit for enhanced durability and performance, along with an efficient oil and water cooling system to manage operating temperatures. The compressor wheel is constructed from forged billet aluminum, measuring 58mm on the inducer side and 76.2mm on the exducer side with an 11B blade design. The turbine wheel measures 60.0mm on the inducer side and 55.0mm on the exducer side, with a Trim 84. This CHRA has undergone balancing and testing on a Schenck 110 VSR machine, ensuring it is ready for immediate use and in good condition. It includes all components shown in the product images. Buyers assume all risk on shipment and usage. Professional installation is highly recommended for this component.
