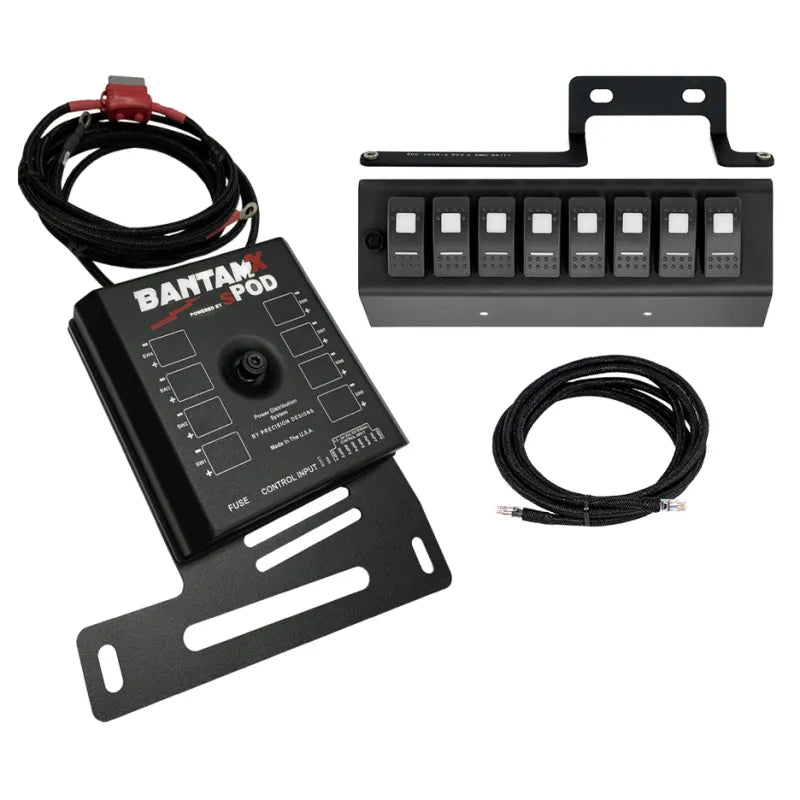

Spod 09-18 Jeep Wrangler JK BantamX w/ Red LED Switch Panel

Part #: 870085

The BantamX will save hours of wiring and installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories.Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.Features:Fully programmable, digital controlled system8 circuits rated at 30 amps at 12.5 VDC per circuit16-position terminal block (easily attach accessories)2 controller ports (RJ45) for Ethernet cablesIntegrated low voltage cutoff (LVCO) battery protection w/ optional overrideOne ATM mini-style fuse for LVCO protection and resetFailsafe self-healing fault protection system (from 1.5 to 30amps)Current-sensing MOSFETs controlled by a microprocessor (no fuses and relays)50amp auto-resetting circuit breakerNylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacketOperates on 12VDC or 24VDC8-position input terminal block for controlling outputsBuilt-in Bluetooth capabilities for remote controlProtection against: overheating, over-current, shorts, reverse polarity and field collapseIgnition control and safety lock-out for switches 1 and 2 (optional)Up to 4 BantamX units can be daisy chained and controlled by one TouchscreenOn-demand wireless software updates/upgradesFits: 2009-2018 Jeep Wrangler JKHardware:Powder coated steel base w/ built in hardwareSilicone gasket for weatherproofingAluminum lidVehicle specific mounting optionsRobust insulated base and coverFeatures Available Through sPOD Mobile App (free):Each switch can be programmed for:DimmingStrobeFlashMomentarySwitch LinkingOn Road and Off Road mode of operationThe following features are only available through the purchase of our Pro-Series App:Circuit timersSwitch lockoutInitial startup current for each circuit is raised to 65amps for 5 secondsProgram any circuit to be always on while still maintaining fault protectionOption to disable deep sleep modeSelectable auto restart after circuit shuts down from over current/shortProgrammable Current Limiting (in 2amp increments up to 30amps)Selectable auto restart for current limiting shut downSelectable Latch or Momentary actions for inputsProgrammable ignition control for all 8 circuitsVariable strobe function to create custom flash/strobe patternsExternal Controller Options (not included with system and can only be used in conjunction with an sPOD controller):Third party switchesComputersArduinoRaspberry PiAlpine Audio systems KAC-001 head unit controllerSensors, thermostats, pressure switches, fan controllers and moreSwitch Panel:Switch panel with eight dual lit LED Red switches (installed and pre-wired)All wires are wrapped in high-temp abrasion resistant nylon braided sleeving.Comes with a 10 foot CAT-6 Ethernet, can be extended up to 25-feet from BantamX)Each switch has 2 programmable modes: strobe or flashAluminum panels are formed, welded and powder coatedCarling Technologies Contura switches (certified to IP66/68 - marine/harsh environment)Controlled lower pilot light (push button)Custom laser-etched rockers are availableAbility to daisy chain panels for remote operations (ie: panel in cab and panel at rear of truck)Auto safe system shutdown when panel is unpluggedCan run in conjunction with another 8-Switch panel, HD and TouchscreenTwo RJ45 ports available integrated into the CAN-Bus controller

BantamX - Jeep 2009-2018 Wrangler JK (Color: Red)

This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
