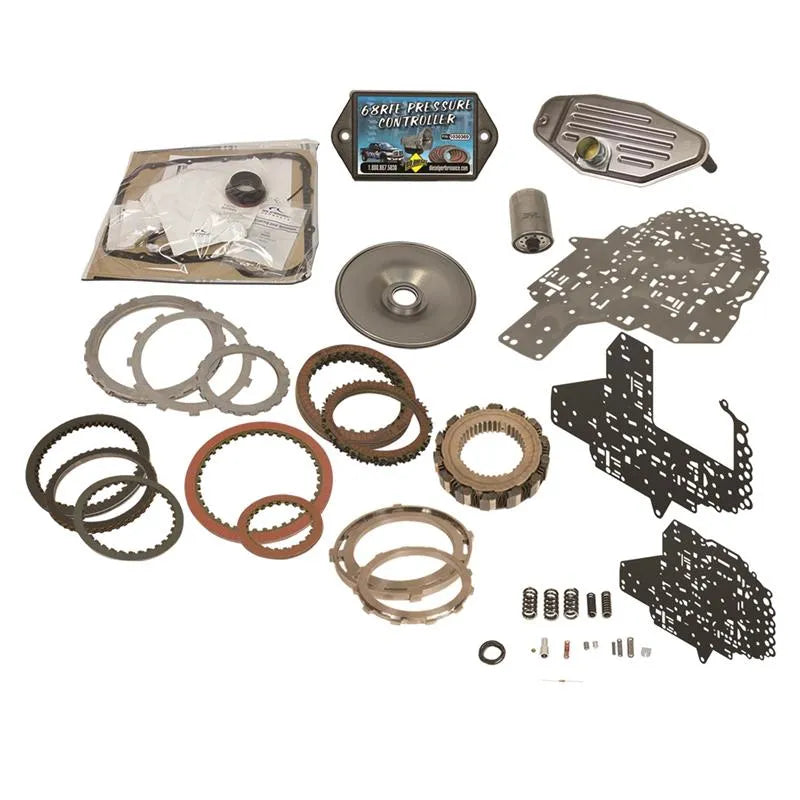

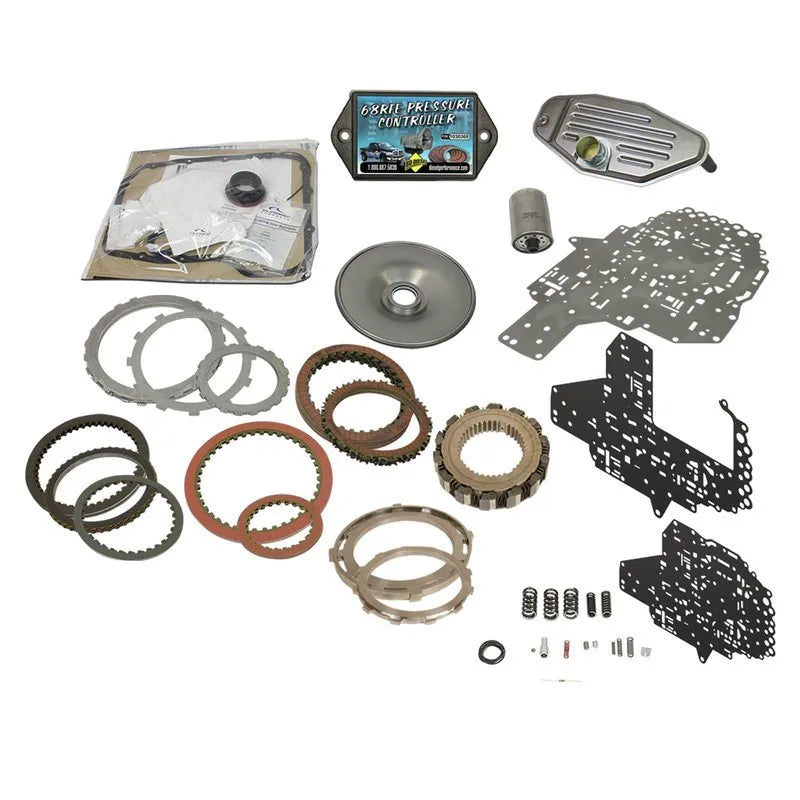

BD Diesel BD Build-It Dodge 68RFE Trans Kit 2007.5-2018 Stage 4 Master Kit c/w ProTect 68 - 1062025

Part #: 1062025

Same parts used in our own performance transmissions; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; All kits include the basic rebuild parts and gaskets; Stiffer Billet Intermediate Reaction Plate; Stiffer Billet OverDrive/Rev Reaction Plate; 2C Clutch Friction Raybestos; 2C Clutch Steel; 4C Clutch Friction Raybestos; 4C Clutch Steel; Filter - Spin On; O/D Gear Friction Raybestos; O/D Gear Steel; One-Way Clutch HD Upgrade; BD Pressure Plate - Lower Machined; BD Pressure Plate - Rev Machined; BD ProTect68 Kit; Pump Cover; Valve Body Accumulator Plate; Reverse Clutch Friction Raybestos; Reverse Friction; Reverse Steel; Filter; Low Reverse Steel; Overhaul Kit

Features:

• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
• Qty 15: OD Clutch Friction, OD Clutch Steel
• Filter - Pan, Spin On
• Pump Cover
• Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
• Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate
• Billet 4C Spring Retaining Ring
• Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack
• Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
• Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
• Heavy duty accumulator plate to prevent accumulator blowout
• O-Ring - pump Cover
• Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
• Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Upgraded One Way Clutch/Sprag
• Over Drive clutches 17% increase and Under Drive clutches 20% increase
• Qty 2: Check Balls 1/4in
• Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel

Stage 4 Master Built-It Transmission Kit | Incl. Basic Rebuilt Parts/ProTect 68/Gaskets/Hardware
