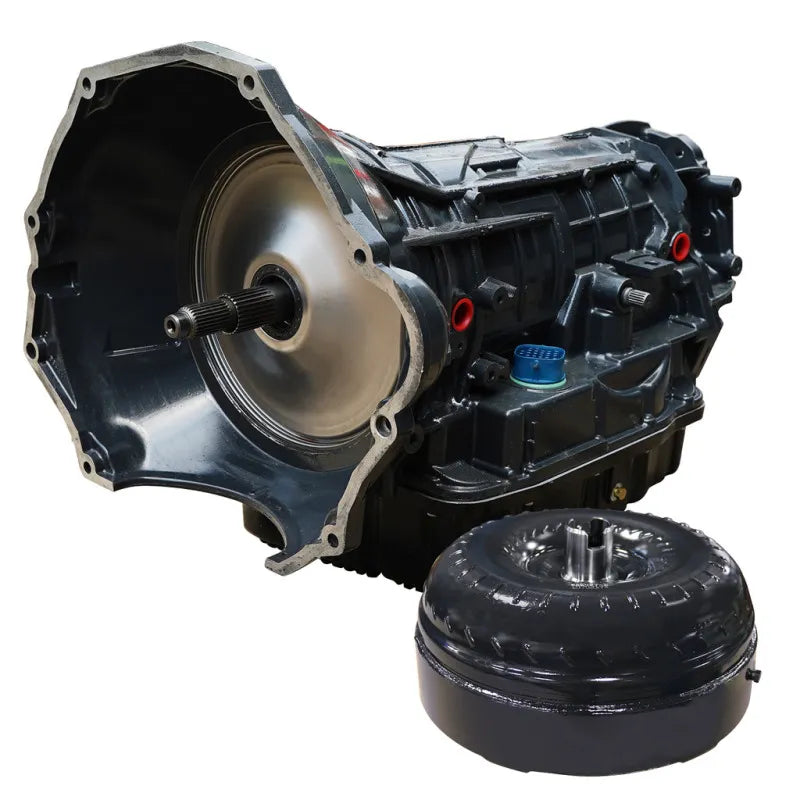

BD Diesel BD TowMaster Dodge 68RFE Trans & Converter Package 2019-2022 4WD - 1064294SS

Part #: 1064294SS

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

Features:

• TRANSMISSION:
• BD reinforced accumulator plate
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
• Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
• PROFORCE CONVERTER:
• Good for 550 flywheel HP
• Ideal replacement for stock torque converter
• High performance Enhanced stall stator
• Great for street and towing applications
• Lower rpm response than the stock converter
• Furnaced brazed turbine fins for improved fluid coupling efficiency
• Hard anodized valve body and new solenoid pack installed in every unit
• Damper springs replaced
• 11.625 inch dual-clutch
• Billet forged front cover with thicker walls and stronger mounting pads
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Heavy duty cam & roller design low reverse one way clutch
• New 4C billet spring retainer
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Over Drive clutches 33% increase & 2C clutches 33% increase
• Custom Big Stack overdrive shaft
• Billet forged front cover with thicker walls and stronger mounting pads

Transmission Kit | 68RFE Transmission | Stage 4 | Incl. ProForce Converter Package
