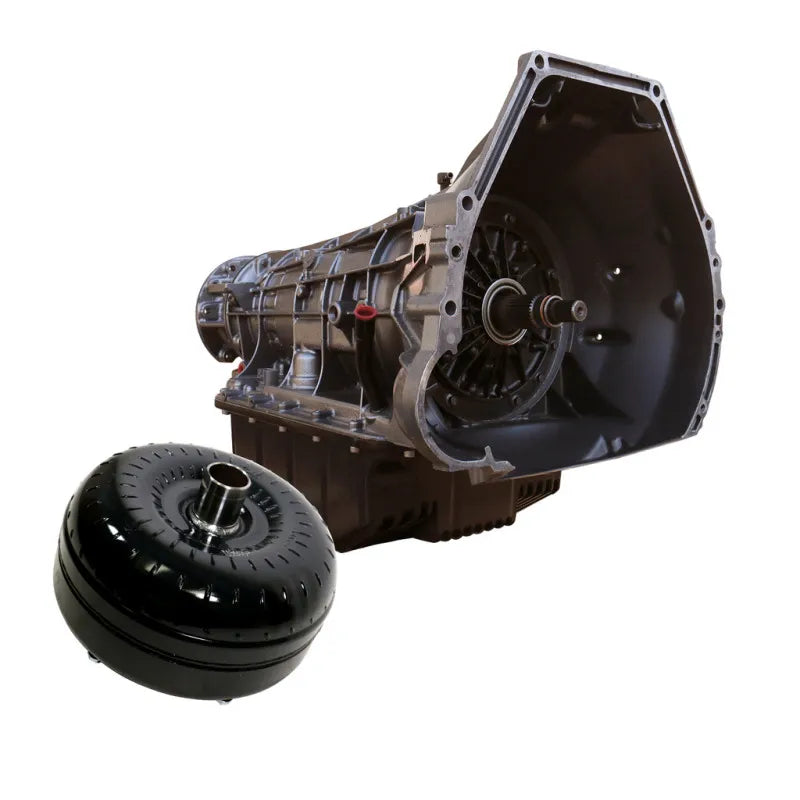

BD Diesel BD TowMaster Ford 4R100 Trans & Converter Package 1999-2003 2WD - 1064442SM

Part #: 1064442SM

Transmission- Increase the durability of your drivetrain. BD aluminum HD deep pan, increases oil capacity by 6qt. Re-calibrated accumulator body, Quicker, firmer shifts. Full shift kit with line mod valve to increase pressures. Increased pressure to converter. Added lube circuits to OD planet. Added lube and support to output and intermediate shafts. Drilled and tapped direct and intermediate feeds to prevent leaks at case. Upgraded OD snap ring. Machined center support. Reworked front pump, Fully rollerized geartrain. Clutch Count: COAST CLUTCH 2, Clutch Count: FORWARD 5, Clutch Count: Direct 5. Clutch Count: LOW REVERSE 7, Clutch Count: INTERMEDIATE 4, Clutch Count: OVERDRIVE 4. Each transmission is dyno tested. Torque Convertor- Enhanced Stall - Street/Towing applications. Torque multiplying cast aluminum stators. Lower rpm response than the stock converter. More efficient operation. Less heat and better fuel economy. Stamp-forged steel front cover, Furnace-brazed fins. Up to triple the amount of lock-up clutch material. Warranty-> Parts- 36 Month/150,000 miles; Labor- 12 Month/24000 Miles.

Features:

• TRANSMISSION:
• TRANSMISSION:
• Drilled and tapped direct and intermediate feeds to prevent leaks at case
• Upgraded OD snap ring
• Machined center support
• Reworked front pump
• Fully rollerized geartrain
• Clutch Count: COAST CLUTCH 2
• Clutch Count: FORWARD 5 (25% increase over stock)
• Clutch Count: DIRECT 5
• Clutch Count: LOW REVERSE 7 (17% increase over stock)
• Clutch Count: INTERMEDIATE 4 (33% increase over stock)
• Increase the durability of your drivetrain
• Clutch Count: OVERDRIVE 4 (33% increase over stock)
• Each transmission is dyno tested
• 1990-2003 include auxiliary frame mounted full flow filter kit
• TORQUE CONVERTOR:
• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material
• Re-calibrated accumulator body
• Quicker, firmer shifts
• Full shift kit with line mod valve to increase pressures
• Increased pressure to converter
• Added lube circuits to OD planet
• Added lube and support to output and intermediate shafts
• TORQUE CONVERTOR:
• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material

Transmission Kit | Complete Trans | Incl. Auxiliary Filter Kit | Incl. Complete Torque Converter | Enhanced Stall | Stage 4
