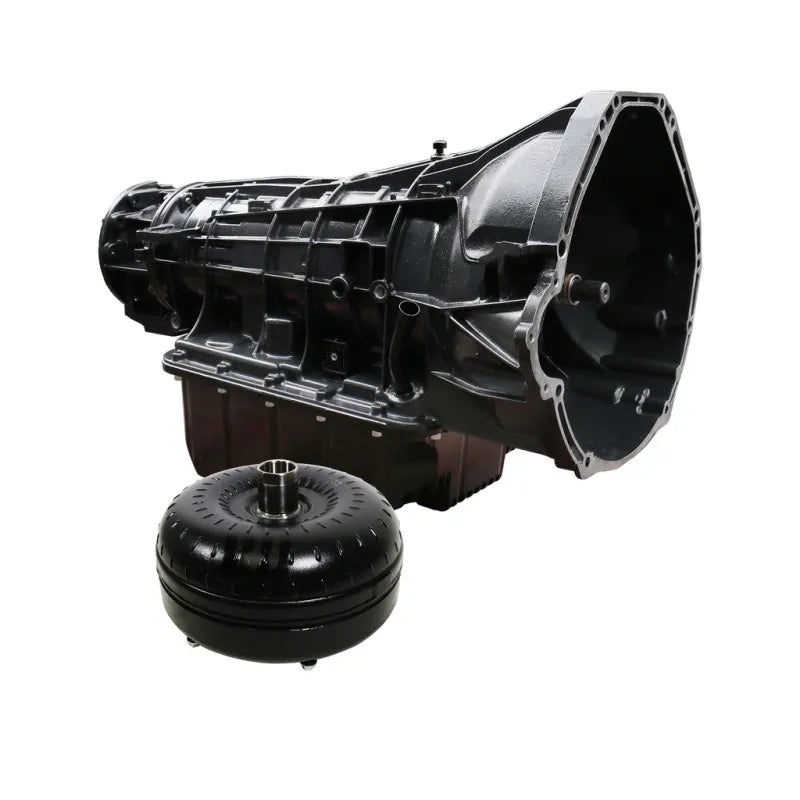

BD Diesel BD TowMaster Ford 5R110 Trans & Converter Package 2005-2007 4WD - 1064484SM

Part #: 1064484SM

Transmission- Increase the durability of your drivetrain. BD aluminum HD deep pan, increases oil capacity by 6qt. Upgraded sump filter. Replace plastic pressure plugs in valve body with aluminum. Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case. Reworked front pump. Clutch Count: COAST CLUTCH 3, Clutch Count: FORWARD 4, Clutch Count: LOW REVERSE 6, Clutch Count: INTERMEDIATE 5 (67% increase over stock), Clutch Count: DIRECT 6 (20% increase over stock), Clutch Count: OVERDRIVE 5 (67% increase over stock). Each transmission is dyno tested. Torque Convertor- Enhanced Stall - Street/Towing applications. Torque multiplying cast aluminum stators. Lower rpm response than the stock converter. More efficient operation. Less heat and better fuel economy. Stamp-forged steel front cover, Furnace-brazed fins. Up to triple the amount of lock-up clutch material. Warranty-> Parts- 36 Month/150,000 miles; Labor- 12 Month/24000 Miles.

Features:

• TRANSMISSION:
• TRANSMISSION:
• Clutch Count: LOW REVERSE 6
• Clutch Count: INTERMEDIATE 5 (67% increase over stock)
• Clutch Count: DIRECT 6 (20% increase over stock)
• Clutch Count: OVERDRIVE 5 (67% increase over stock)
• Each transmission is dyno tested
• TORQUE CONVERTOR:
• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Increase the durability of your drivetrain
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Upgraded sump filter
• Replace plastic pressure plugs in valve body with aluminum
• Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case
• Reworked front pump
• Clutch Count: COAST CLUTCH 3
• Clutch Count: FORWARD 4
• TORQUE CONVERTOR:
• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material

Transmission Kit | Complete Trans | Incl. Complete Torque Converter | Enhanced Stall | Stage 4
