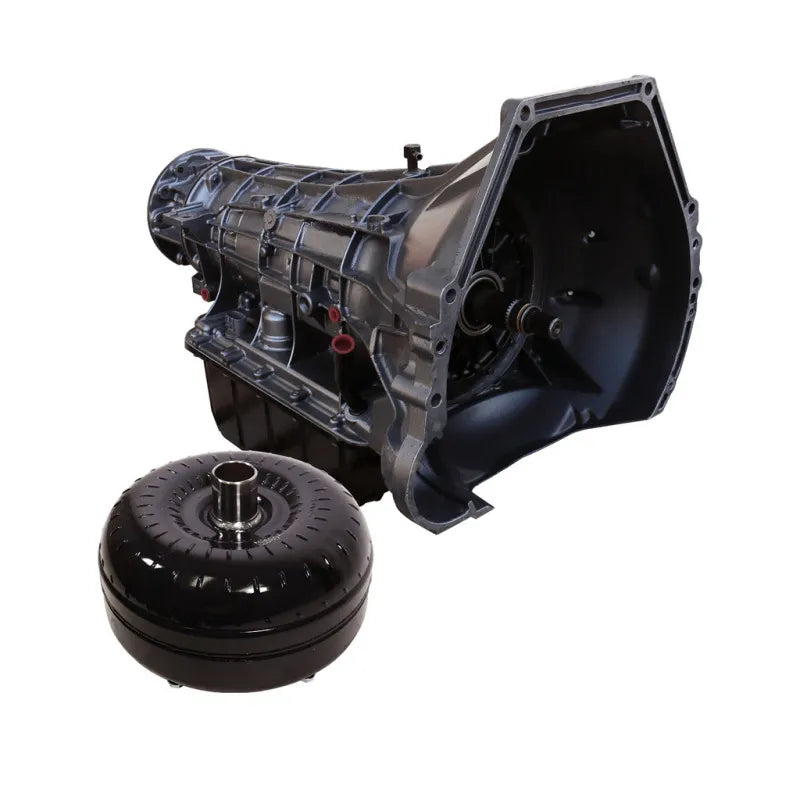

BD Diesel 95-97 Ford E4OD 95-97 2WD c/w Filter Kit Transmission & Converter Stage 4 Package

Part #: 1064422SM

Machined center support; Machined intermediate piston; Machined low/reverse pressure plate; Machined rear ring gear hub; Added lube circuits to OD planet; Added lube and support to output and intermediate shafts; Replaced all aluminum planetaries with steel; Drilled and tapped direct and intermediate feeds to prevent leaks at case; Re-programmed accumulator body; Full shift kit with line mod valve to increase pressures; Accumulator body enhanced oil flow; Increased cooler pressure; Increased pressure to converter; Creates positive clutch application; Created lube circuit for towing in overdrive; 1990-2003 include auxiliary frame mounted full flow filter kit; Clutch Count: COAST CLUTCH 2; Clutch Count: FORWARD 5; Clutch Count: DIRECT 5; Clutch Count: LOW REVERSE 7; Clutch Count: INTERMEDIATE 4; Clutch Count: OVERDRIVE 4; Pan adds 6qt extra oil capacity; Fully rollerized geartrain; Tighter clutch packs that provide a quicker shift; 30%-40% more clutch material with additional steels; Improved internal lubrication by adding high power boost valves; Reworked front pump; Improved bearing designs; Upgrade supports; Upgraded sprags; Sure-loc snap rings; Solenoids hard wiring providing high temperature resistance; Increase the durability of your drivetrain; Revised oil circuits; Handles up to 300% more power and torque than the stock transmission; Extra clutches and stronger internals; BD rigid aluminum heavy duty transmission pan; Pan reduces case flex; Pan reduces case flex; Pan reduces internal oil leakage; Pan heat-dissipating fins keep temperature down; Pan magnetic drain plug

Features:

• TRANSMISSION:
• TRANSMISSION:
• Re-programmed accumulator body
• Full shift kit with line mod valve to increase pressures
• Accumulator body enhanced oil flow
• Increased cooler pressure
• Increased pressure to converter
• Creates positive clutch application
• Created lube circuit for towing in overdrive
• 1990-2003 include auxiliary frame mounted full flow filter kit
• Clutch Count: COAST CLUTCH 2
• Clutch Count: FORWARD 5
• Machined center support
• Clutch Count: DIRECT 5
• Clutch Count: LOW REVERSE 7
• Clutch Count: INTERMEDIATE 4
• Clutch Count: OVERDRIVE 4
• Pan adds 6qt extra oil capacity
• Fully rollerized geartrain
• Tighter clutch packs that provide a quicker shift
• 30%-40% more clutch material with additional steels
• Improved internal lubrication by adding high power boost valves
• Reworked front pump
• Machined intermediate piston
• Improved bearing designs
• Upgrade supports
• Upgraded sprags
• Sure-loc snap rings
• Solenoids hard wiring providing high temperature resistance
• Increase the durability of your drivetrain
• Revised oil circuits
• Handles up to 300% more power and torque than the stock transmission
• Extra clutches and stronger internals
• BD rigid aluminum heavy duty transmission pan
• Machined low/reverse pressure plate
• Pan reduces case flex
• Pan reduces internal oil leakage
• Pan heat-dissipating fins keep temperature down
• Pan magnetic drain plug
• Not warranted for Race or Sled Pull use
• Each transmission is dyno tested
• TORQUE CONVERTOR:
• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• Machined rear ring gear hub
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material
• Added lube circuits to OD planet
• Added lube and support to output and intermediate shafts
• Replaced all aluminum planetaries with steel
• Drilled and tapped direct and intermediate feeds to prevent leaks at case
• TORQUE CONVERTOR:
• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material

Transmission Kit | Complete Trans | Incl. Auxiliary Filter Kit | Incl. Complete Torque Converter | Enhanced Stall | Stage 4
