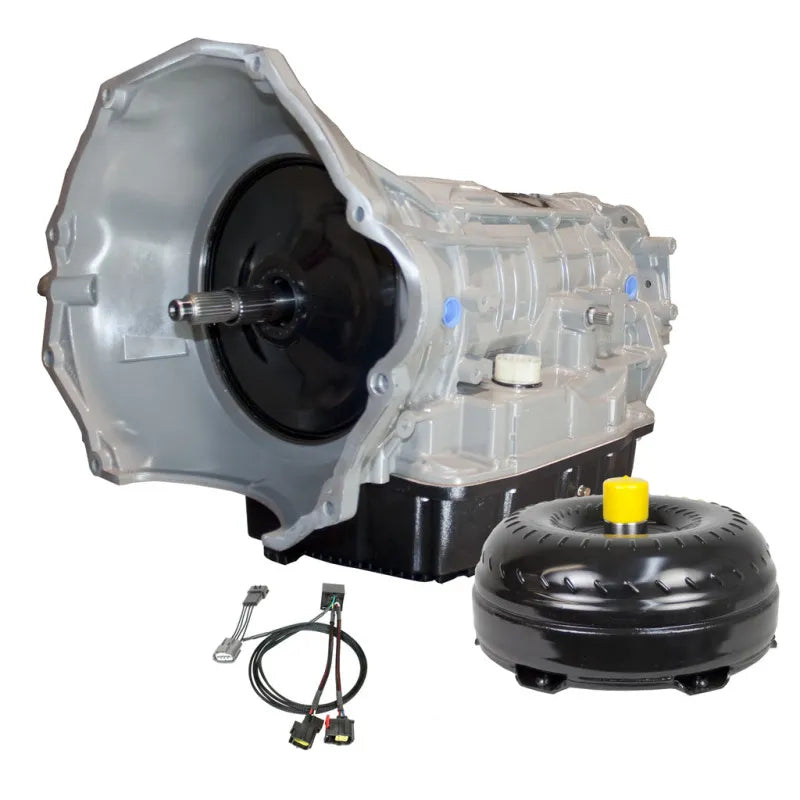

BD Diesel Dodge 68RFE Transmission & Converter Package - 07.5-18 Dodge 4WD

Part #: 1064264SM

Transmission- Hard anodized valve body and new solenoid pack installed in every unit. Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks. Heavy duty cam & roller design low reverse one way clutch. New 4C billet spring retainer. Steel girdle added to 2C piston to allow for more clutches and broader apply area. BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum. Over Drive clutches 33% increase & 2C clutches 33% increase. Custom Big Stack overdrive shaft. BD reinforced accumulator plate. TCC limit valve machined and sleeved to address high wear area with in pump. BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex. BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required. Performance Transmission but with the added touch of a Billet Input Shaft to take the 'snap' from rapid throttle and high horsepower. Torque Convertor- Enhanced Stall. Machined Pistons, HD Springs Absorb Shock of Engagement. Stamp forged 1 pc cover, eliminates warpage from clutch heat. Taller cover can be rebuilt more often. Self-centering teeth design increases contact decreases wear and chatter. Riveting process ensures alignment & eliminates vibration or embrittlement from welding. Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency. Warranty- Parts- 36 Month. 150,000 Miles; Labor 12 Months/24000 Miles.

Transmission Kit | Complete Trans | Incl. Pressure Control Module | Incl. Complete Torque Converter | Enhanced Stall | Stage 4
