BD Diesel Xtruded Trans Oil Cooler - 5/8 inch Cooler Lines - 1030606-5/8

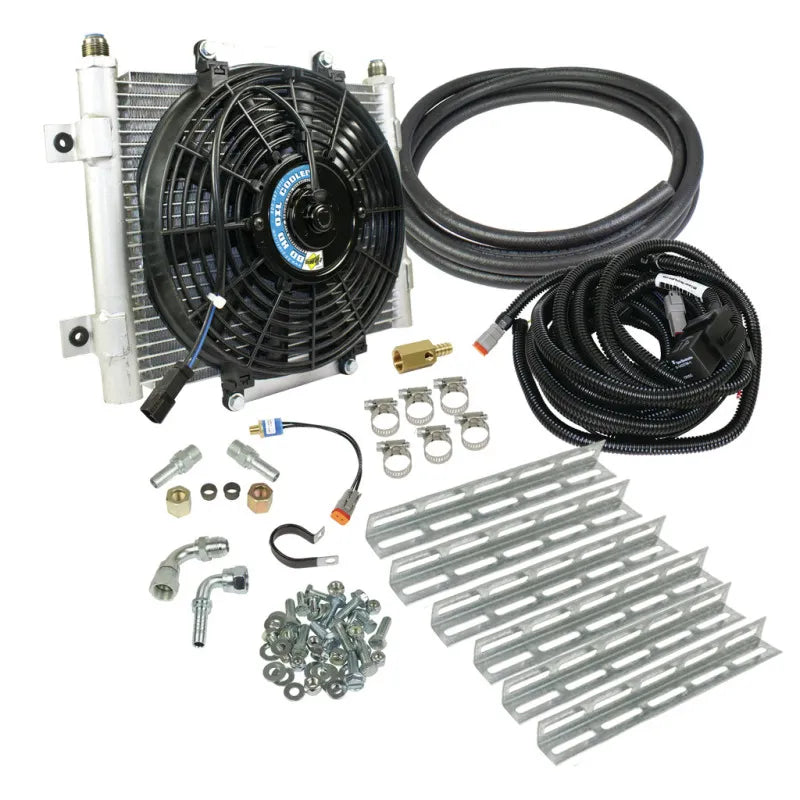

BD's Xtrude Transmission Oil Cooler is designed for optimal heat transfer with 200 Micro Extruded passages. It features large 5/8-inch ports to prevent inlet/outlet restriction and furnace brazed rails tested to 300psi. The kit includes a thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan for automatic oil temperature control. Rated at 33,930 BTU/HR and in excess of 30,000 GVW, it comes complete with all fittings, clamps, hoses, hardware, and a Build-It-Yourself galvanized bracket kit. The pre-wired loomed harness with fuse and relay uses OEM style sealed connectors. This cooler is intended to be used in conjunction with factory transmission coolers, not as stand-alone units.
