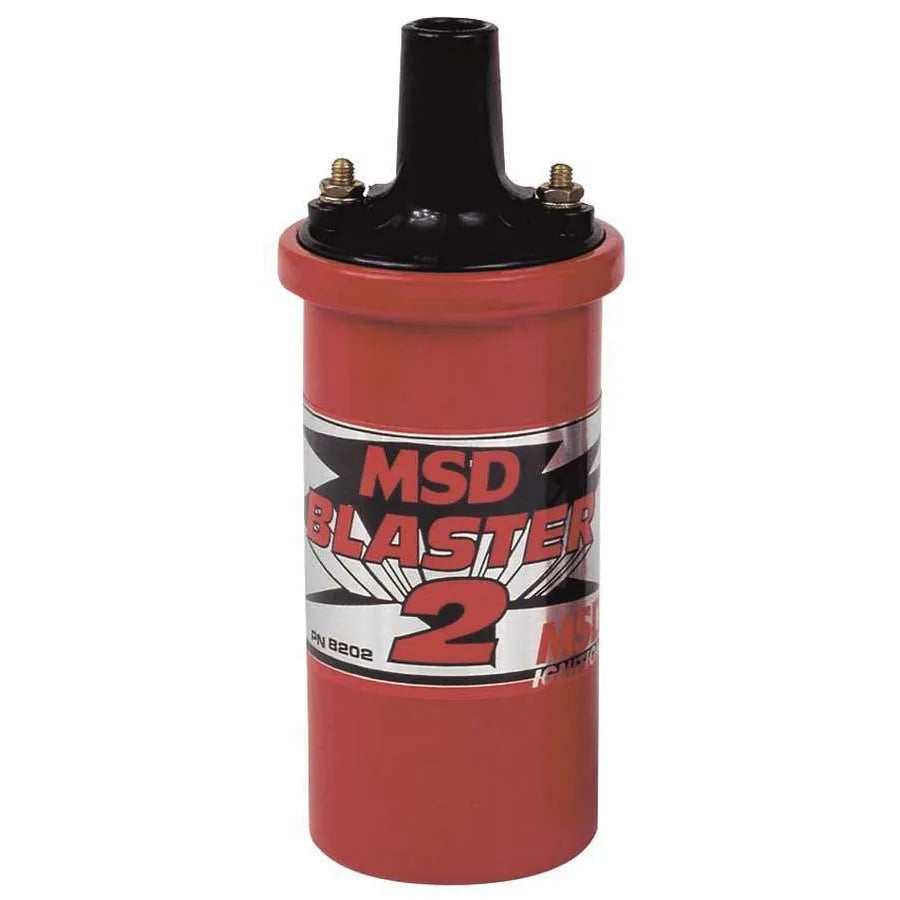

MSD Ignition Coil Blaster 2 Red Universal Use With An MSD Ignition Box MSD Ignition

Part #: 8202

Our famous red canister coil, a great choice with an MSD 6-series ignition.The Blaster Coil is designed to mount in most factory canister coil mounts. MSD also offers a Chrome Coil Bracket, PN 8213. It is recommended to mount the PN 8202, PN 82023, and 8223 coils in an upright position. The High Vibration Coil, PN 8222, can be mounted in any position due to its epoxy potting compound.If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage. These windings are held secure and kept cool in an oil-filled metal canister.Alkyd tower with high dielectric properties is less prone to carbon trackingImproved output coil for electronic ignitions, Blaster Ignition or MSD 5, 6, and 7 Series (ballast resistor required for points)Metal canister is filled with a premium grade oil for cooling100:1 turns ratio and lower primary resistance produce high voltage outputCARB E.O. approvedDetails:Emission Code: 1Inductance Mh: 8.0Maximum Voltage: 45,000Peak Current: 140.0Primary Resistance: 0.7Spark Duration: 0.35Turns Ratio: 4.17Warranty: Manufacturer's Limited 1 Year Warranty

Features:

• Improved output coil for electronic ignitions, Blaster Ignition or MSD 5, 6, and 7 Series (ballast resistor required for points)
• Alkyd tower with high dielectric properties is less prone to carbon tracking
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Metal canister is filled with a premium grade oil for cooling
• CARB E.O. Approved

Universal - Use with an MSD Ignition Box
