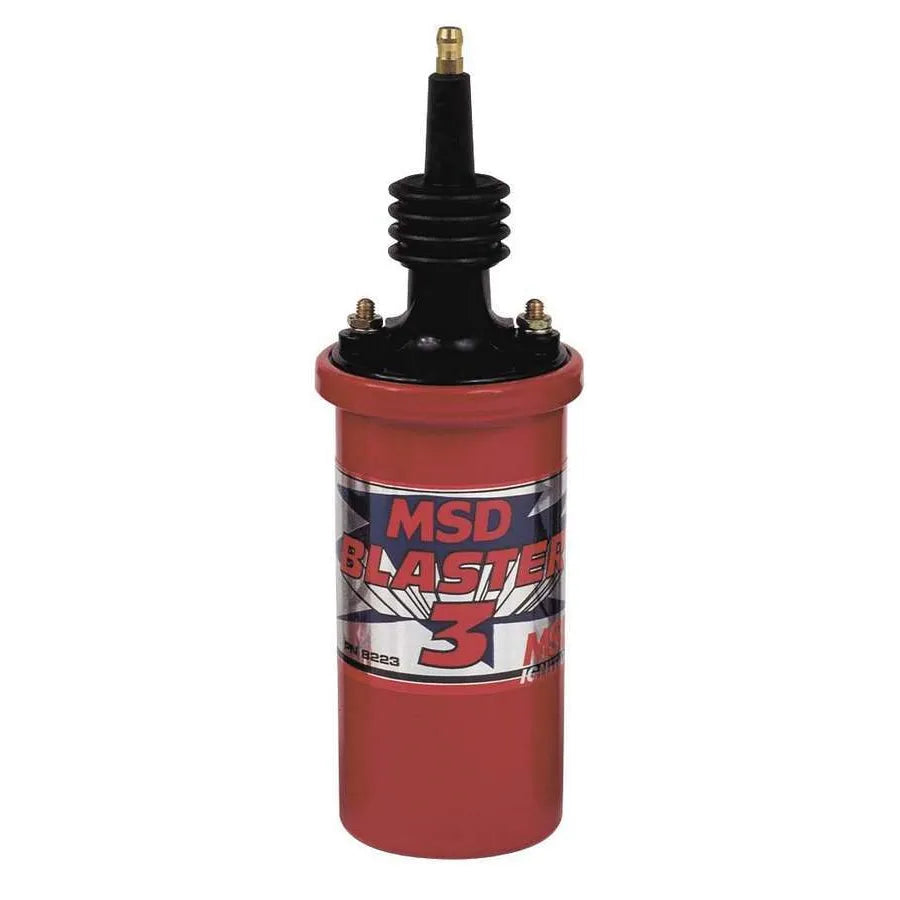

MSD Ignition Coil Blaster 3 Extra-Tall Tower Universal Use With MSD Ignition Box 90 Degree Terminal And Boot Included MSD Ignition

Part #: 8223

The Blaster 3 Coil features an extra-tall tower design to improve the coil wire attachment and spark isolation. Supplied with a 90-degree terminal and boot.If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister.Supplied with a 90 Degree spark plug style terminal and bootCARB E.O. ApprovedMSD Red metal canister is filled with a premium grade oil for coolingExtra tall secondary tower for secure coil wire connectionImproved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points) 100:1 turns ratio and lower primary resistance produce high voltage outputDetails:Emission Code: 1Inductance Mh: 8.0Maximum Voltage: 45,000Peak Current: 140.0Primary Resistance: 0.7Spark Duration: 0.35Turns Ratio: 4.17Warranty: Manufacturer's Limited 1 Year Warranty

Features:

• Extra tall secondary tower for secure coil wire connection
• Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)100:1 turns ratio and lower primary resistance produce high voltage output
• MSD Red metal canister is filled with a premium grade oil for cooling
• Supplied with a 90 degrees spark plug style terminal and boot
• CARB E.O. Approved

Ignition Coil - Blaster 3 - Canister - Oil Filled - 0.700 ohm - Male HEI - 45000V - Red - MSD Ignitions - Each
