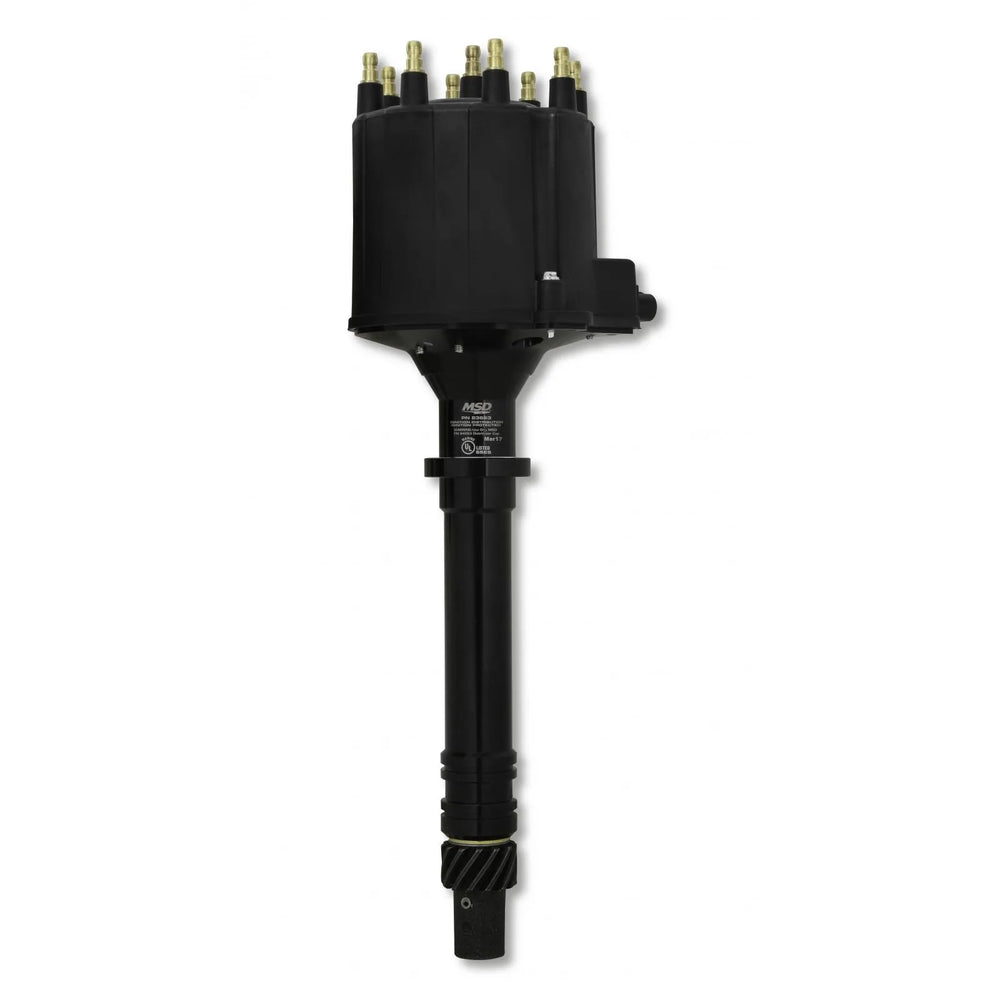

Gm Late Model Hei V8 Ext Coil Distributor- Black Drop-In Replacement Distributor- Black For Late Model GM Hei Distributors With Exterior Coil MSD Ignition

Part #: 83663

A factory-style ignition module is supplied with the distributor so your factory wiring will plug directly in. Triggering this module is the responsibility of a high output magnetic pick-up. Topping it all off is a heavy-duty rotor and a red MSD cap with brass terminals to ensure full spark delivery. For late model engine swaps or bolt-on strength, this distributor is the answer.GM late-model performance enthusiasts will be happy to see this Pro-Billet Distributor. The distributor, PN 83663, is a drop-in replacement for GM V8s using the small cap distributor with a dual connector coil found in cars from 1987-1993 and trucks from 1987-1995.The entire housing is CNC-machined to exact tolerances for incredible strength (not to mention cool looks). For improved lubrication there is an extra oil tract machined into the bottom of the housing that delivers oil directly to the cam and distributor gears. Inside, a polished steel shaft receives guidance from a sealed ball bearing and an extra-long sintered bushing adds stability. This 0.500 Inch shaft also receives a QPQ coating for increased friction reduction and corrosion resistance.CNC machined billet aluminum housing and billet aluminum baseDrop-in billet replacement for GM distributors with the small cap and external coilO-ring seals can be added to modified blocks to improve oil pressure controlLegal to install in all 50 statesMarine UL CertifiedMagnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeSupplied with late model distributor cap and rotorFactory style ignition module accepts factory wiringSpecial oil tract improves lubrication to the distributor and cam gearOversized steel shaft is QPQ coated and guided by a sealed ball bearing and an extra long sintered bushingDetails:Distributor Cap Included: YesDistributor Type: OE ReplacementEmission Code: 2Gear Material: Cast Iron Melonized QPQ CoatedIgnition Box Required: NoIgnition Coil Included: NoIgnition Rotor Included: YesWarranty: Manufacturer's Limited 1 Year Warranty

Features:

• Drop-in billet replacement for GM distributors with the small cap and external coil
• Factory style ignition module accepts factory wiring
• CNC machined billet aluminum housing and billet aluminum base
• Magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Oversized steel shaft is QPQ coated and guided by a sealed ball bearing and an extra long sintered bushing
• Special oil tract improves lubrication to the distributor and cam gear
• O-ring seals can be added to modified blocks to improve oil pressure control
• Supplied with late model distributor cap and rotor
• Legal to install in all 50 states
• Marine UL Certified

Distributor - Pro-Billet - EFI - Magnetic Pickup - Electronic Advance - HEI Style Terminal - Black - Chevy V8 - Each
