BLUE SEA SYSTEMS 7622301-BSS ML-AC

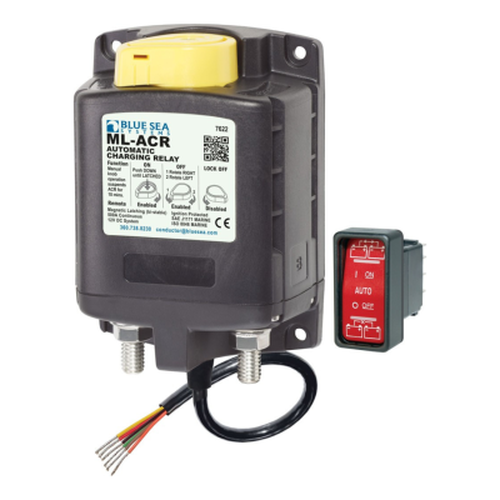

The Blue Sea Systems 7622 ML-ACR (Magnetic Latch) Automatic Charging Relay automatically combines batteries during charging and isolates batteries when discharging and when starting the engine. It includes an ML-Series Remote Control Contura Switch (Part #: 2146). The ML-ACR draws very low current (<40mA to monitor terminal voltage). The manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing. It has a 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combined. Silver alloy contacts provide high reliability for switching live loads. It features 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance and a 7/8" (22mm) stud length that accepts multiple cable terminals. It also has label recesses for circuit identification.
