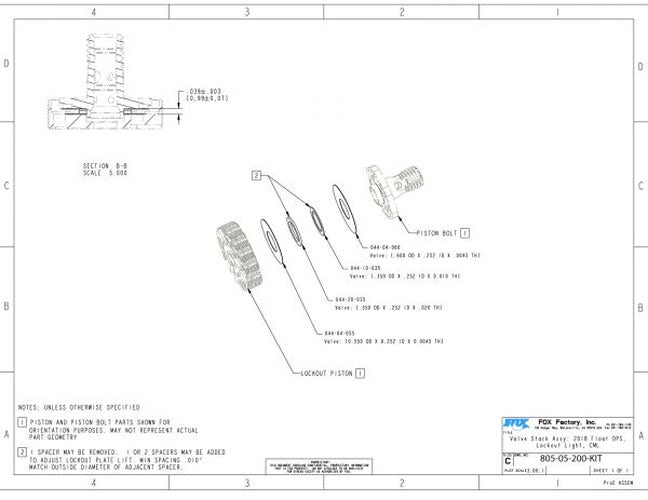

BODY ASSEMBLY: (T) 2.750 BORE 3T

New for 2018: New Remote Parts - Updated parts to work with new Push-to-Unlock logic. New tunes - New Linear and Digressive tuning options for MY18 (See valving assembly drawings below). Remote lever - Updated MY18 2 position lever, single and dual cable capable. EVOL Air Sleeves - New 1-piece EVOL sleeves for MY18 (all optimized by travel) Compatible only with MY18 Body Bearing. New Body Bearing - Compatible only with MY18 1-piece EVOL sleeves. Maintenance Information: Service Interval Full Service 125 hours. Seal Kit: DPS, CTD Boost Valve and Dish Shock Rebuild (803-00-816). Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring (803-00-142). Tooling: Custom Socket, 5/8\", 2016 Float DPS, Piston Bolt (398-00-637). Tooling: Custom Spanner Socket, 3 pin, Float DPS, Lockout Piston (Rev B is drilled to clear new pin on remote pistons) (398-00-638 Rev B). Tooling: Roll pin press guide for DPS remote (new for 2017) (398-00-730). Kit: Tooling, iCD/CTD Dish Shock Dial Indicator Attachment for Plate Lift Measurement (803-00-806). Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in (803-00-805). Air Valve Assembly: Nitrogen Safety Needle Assembly w/Manual, Complete w/out Gauge (802-01-000-KIT). Tooling: Torque Fixture, 54mm Trunnion Eyelet (398-00-099). Air Volume Tuning Information: Kit: FLOAT CTD/DPS (9mm Shaft) Air Volume Tuning Kit (803-01-250). Oil Information: Damper Oil (025-02-003) Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red. Air Chamber (025-03-002-A) Oil: AM, FOX FLOAT Fluid [5 cc], Pillow Pack. (025-03-003-A) Oil: AM, FOX FLOAT Fluid [8 oz.]. IFP Information: IFP Pressure: 500psi. Standard Size IFP Height (all measurements +/- 0.020in): 5.50 x 1.00 - 1.510in/ 38.35mm, 6.00 x 1.25 - 1.720in/ 43.69mm, 6.50 x 1.50 - 1.940in/ 49.28mm, 7.25 x 1.75 - 2.150in/ 54.61mm, 7.50 x 2.00 - 2.360in/ 59.94mm, 7.875 x 2.00 - 2.360in/ 59.94mm, 7.875 x 2.25 - 2.580in/ 65.53mm, 8.50 x 2.50 - 2.790in/ 70.87mm. Metric/Trunnion Sizing IFP Height (all measurements +/- .020in): 145(T) x 35 - 1.830 +/- 0.020in, 170 x 35 - 1.830 +/- 0.020in, 165(T) x 45 - 2.150 +/- 0.020in, 190 x 45 - 2.150 +/- 0.020in, 185(T) x 55 - 2.500 +/- 0.020in, 210 x 55 - 2.500 +/- 0.020in, 205(T) x 65 - 2.830 +/- 0.020in, 230 x 65 - 2.830 +/- 0.020in, 225(T) x 75 - 3.170 +/- 0.020in, 250 x 75 - 3.170 +/- 0.020in. 2018 FLOAT DPS Part Information: Size Specific Parts: Shock Size - Metering Rod - Shaft - Compression Rod - Ano Body - Kashima Body.
