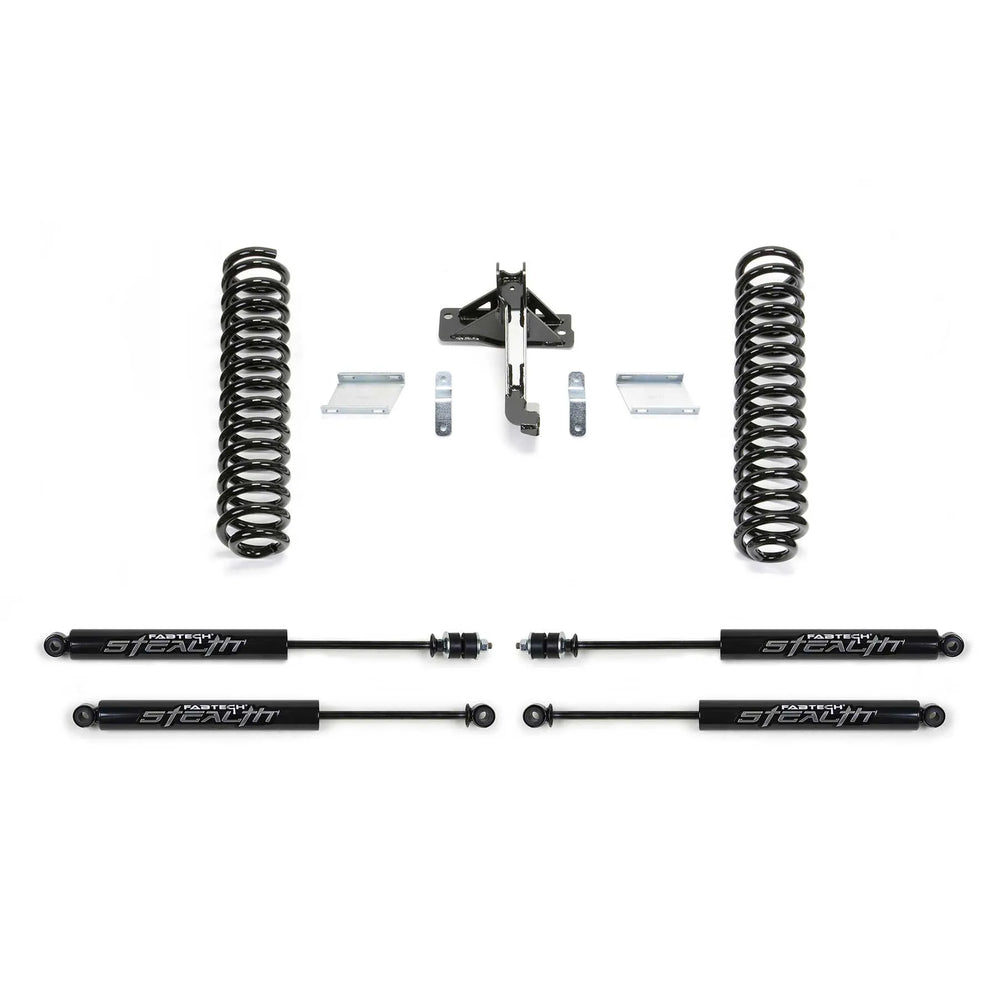

Fabtech 17-23 Ford F250/F350 4WD Diesel 2.5in Budget Coil Kit w/Stealth

This lift kit is designed for the 2017-2026 Ford F250/F350 4WD Super Duty, ideal for enthusiasts seeking to install oversized tires and gain additional wheel travel for off-road use. It allows for the easy fitment of 35" tall tires due to the ample Super Duty wheel well openings. The Fabtech coil springs are engineered to maintain the factory load-carrying capacity while significantly increasing suspension travel. The design permits an extra inch of compression travel without binding. Included sway bar drop brackets correctly reposition the front sway bar to prevent bind at full droop. Brake line extension brackets are provided to relocate the factory brake lines, preventing overstretching and maintaining the sealed factory brake system for a fast and hassle-free installation. The kit utilizes factory bump stops without extensions, optimizing travel with the new Fabtech components. To correct the common issue of the front axle being pushed to one side after lifting a Super Duty, Fabtech includes a heavy-duty 1/4" thick steel Track Bar mount. This repositions the track bar and front axle to factory specifications, ensuring proper tracking and excellent highway manners. The kit comes with Fabtech Stealth shocks, which are sealed monotube shocks featuring a Nitrocarb piston rod for superior corrosion resistance and protection against rock chipping, offering a balanced ride with good off-road damping. After installation, the vehicle's front-to-rear stance will be nearly flat, addressing the factory nose-down appearance. An optional 4" rear block kit (FTS22214) is available for those who prefer to retain a slight nose-down look, replacing the factory 2.5" blocks for an additional 1.5" of lift. The suspension has been thoroughly cycled to ensure bind-free and reliable operation. This kit does not fit non-dually models, gas motors, or vehicles equipped with Ford onboard scale system (note: vehicle submodel database does not allow filtering for the Ford onboard scale system).
